Product Description
The IP67 Waterproof 2-Pin Three-Way Self-Locking connector represents the next generation of quick-connect solutions for modern industrial applications. This innovative connector combines a unique three-way branching capability with an intuitive self-locking mechanism, providing unparalleled convenience and reliability in electrical connections. Engineered with precision-machined contacts and advanced sealing technology, this connector ensures complete protection against moisture, dust, and environmental contaminants. The smart self-locking system delivers audible and tactile feedback upon proper engagement, eliminating connection uncertainties while maintaining a secure hold even under vibration and mechanical stress. Ideal for complex wiring systems requiring multiple connection points, this connector streamlines installation processes and enhances system reliability across various industrial sectors.

Product Features
Tri-Port Connectivity Design
Features an innovative three-way connection architecture that allows simultaneous branching to multiple devices, reducing the need for additional adapters and junction boxes. The compact design saves space while providing multiple connection points in a single housing unit.

Intelligent Self-Locking Mechanism
Advanced push-pull locking system with automatic engagement and positive locking feedback. The mechanism ensures secure connections without requiring additional locking tools or complicated procedures, while color-coded indicators show connection status.

Superior Environmental Protection
IP67-rated sealing performance with double-layer silicone gaskets and precision-molded housing. The connector withstands temporary immersion up to 1 meter depth and provides complete protection against dust, oils, and chemicals.

High Reliability Contacts
Gold-plated phosphor bronze contacts ensure excellent electrical conductivity and corrosion resistance. The precision-machined contacts maintain stable electrical performance through thousands of mating cycles.

Quick-Disconnect Functionality
Simple push-button release mechanism allows for easy disconnection without tools. The design includes safety features to prevent accidental disconnection while allowing intentional release with minimal effort.

Universal Compatibility
Standardized pin configuration works with various wire gauges (AWG 16-22) and accommodates different cable types including PVC, PUR, and rubber insulated cables.

Product Advantages
Installation Efficiency
Reduces installation time by up to 60% compared to traditional connectors, thanks to the self-locking mechanism and three-way design that eliminates multiple connection points.

Space Optimization
The compact three-way design saves up to 40% space compared to using multiple single connectors, making it ideal for applications with limited installation space.

Enhanced Reliability
The self-locking mechanism prevents accidental disconnections and ensures maintained electrical continuity even in high-vibration environments, reducing system downtime.

Cost Effectiveness
Eliminates the need for additional junction boxes and adapters, reducing both material costs and installation labor expenses.

Maintenance Simplification
The quick-disconnect feature allows for easy maintenance and component replacement without requiring specialized tools or technical expertise.

Versatile Application
Suitable for both power and signal transmission applications, providing flexibility in various industrial settings and reducing inventory requirements.

Product parameters

Product Model :JQ25

Number of cores :2/3/3+9 pins

Shell material: Nylon

Rated voltage :250V

Rated current :5 to 30A

Waterproof rating :IP67

Operating temperature :-40°C+105 °C

Cable diameter: Medium 5.8- medium 9.2mm

Connection method: Self-locking plug and unplug

Application Fields
Industrial Automation

• Robotic arm connections

• Sensor network branching

• Control panel interconnections

• Motor power distribution

Outdoor Lighting Systems

• Landscape lighting networks

• Street light connections

• Garden lighting systems

• Architectural lighting arrays

Renewable Energy

• Solar panel connections

• Wind turbine sensor networks

• Battery monitoring systems

• Power distribution boxes

Transportation Equipment

• Vehicle lighting systems

• Marine electronics

• Railway signal connections

• Automotive test equipment

Building Automation

• HVAC control systems

• Security system connections

• Energy management networks

• Smart building sensors

Medical Equipment

• Portable medical devices

• Diagnostic equipment

• Patient monitoring systems

• Medical lighting applications

Frequently Asked Questions (FAQ)

Q1: How does the three-way connection work?
A: The connector features one input and two output ports in a single housing, allowing simultaneous connection to multiple devices without additional adapters.

Q2: Is special training required for installation?
A: No special training is needed. The self-locking mechanism is intuitive and provides clear audible confirmation when properly connected.

Q3: Can it handle both power and signal transmission?
A: Yes, the connector is suitable for both power delivery (up to 10A/250V) and signal transmission applications, providing versatility in various systems.

Q4: How waterproof is the IP67 rating?
A: IP67 rating ensures complete protection against dust and temporary immersion in water up to 1 meter depth for 30 minutes.

Q5: What maintenance is required?
A: The connector requires minimal maintenance. Periodic visual inspection and cleaning of contacts are recommended in harsh environments.

Q6: Are custom cable lengths available?
A: Yes, we offer custom cable assembly services with various length options to meet specific application requirements.

Q7: How durable is the self-locking mechanism?
A: The mechanism is rated for ≥5000 mating cycles while maintaining its locking force and waterproof integrity.

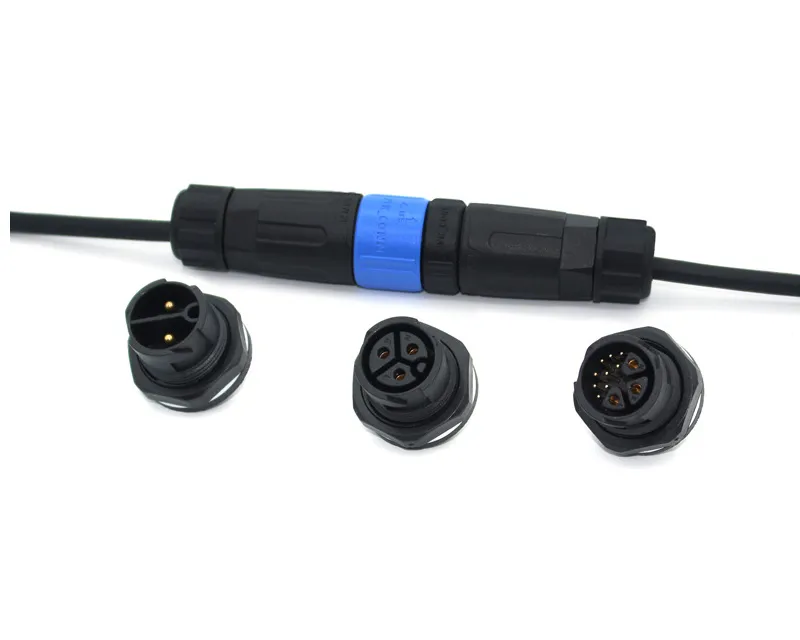

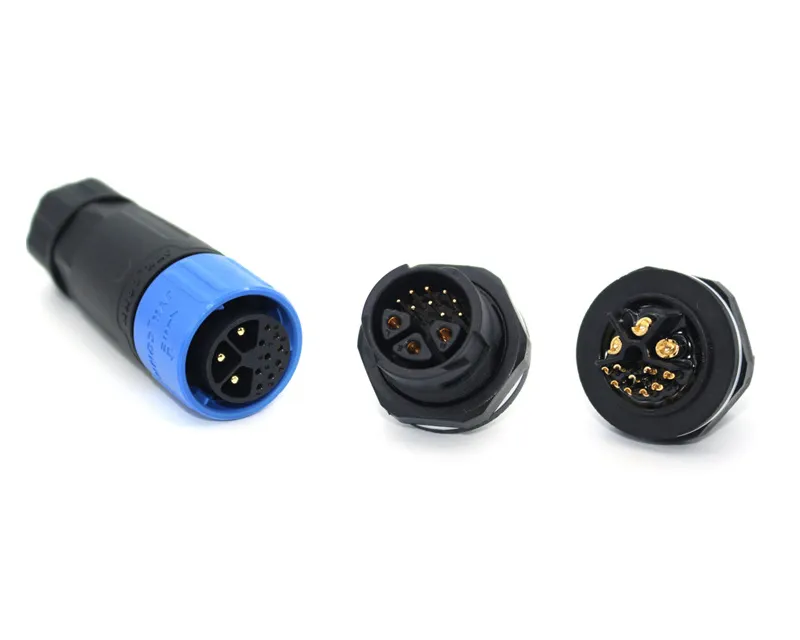

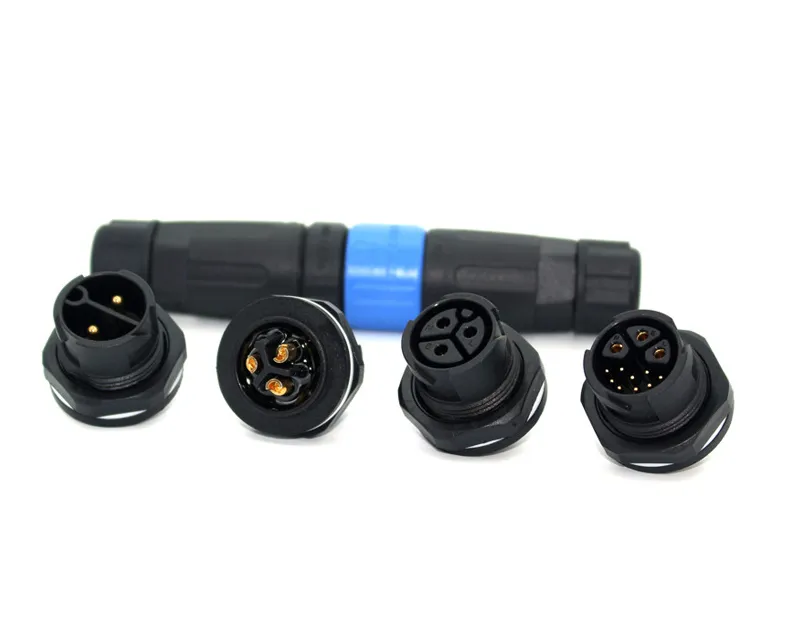

Display of waterproof plug
