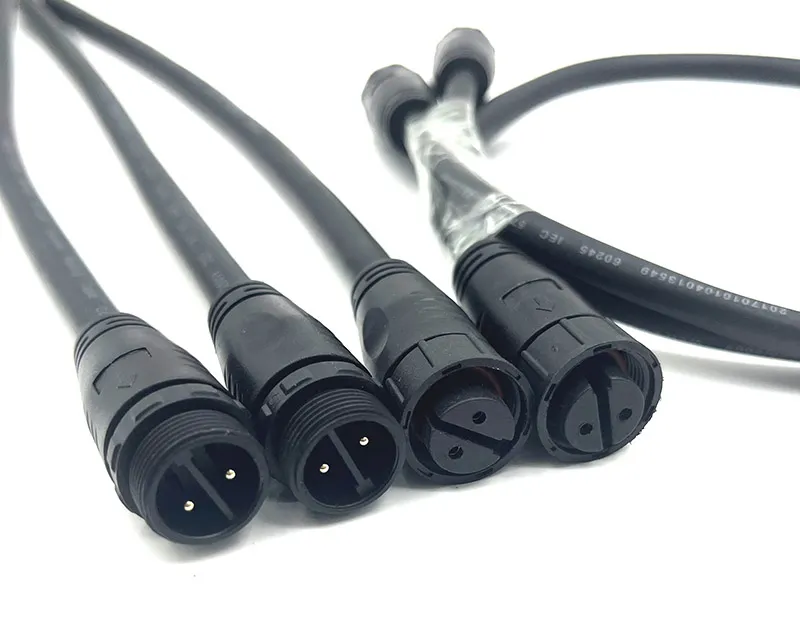

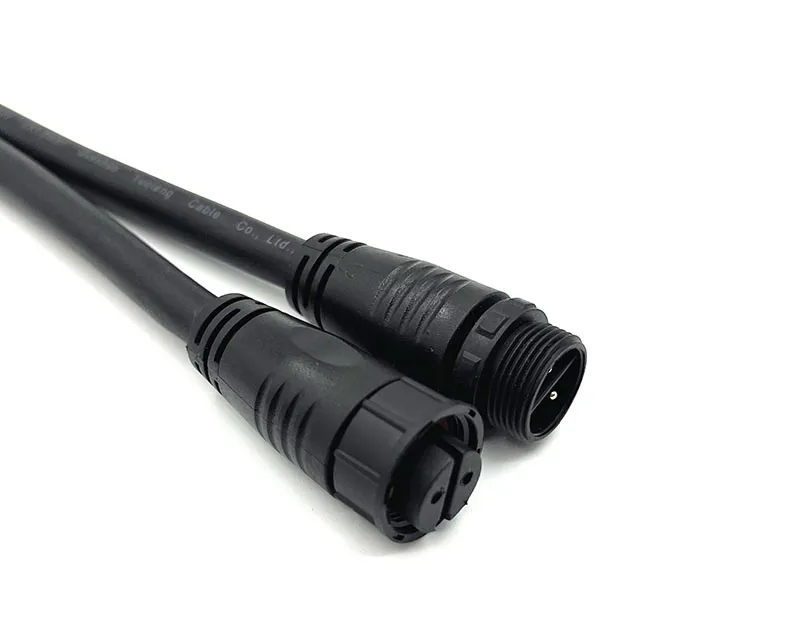

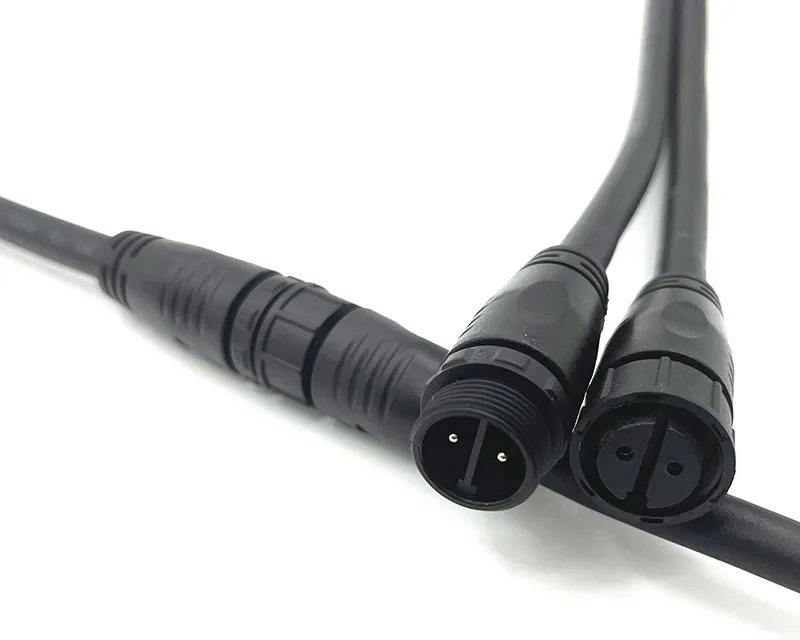

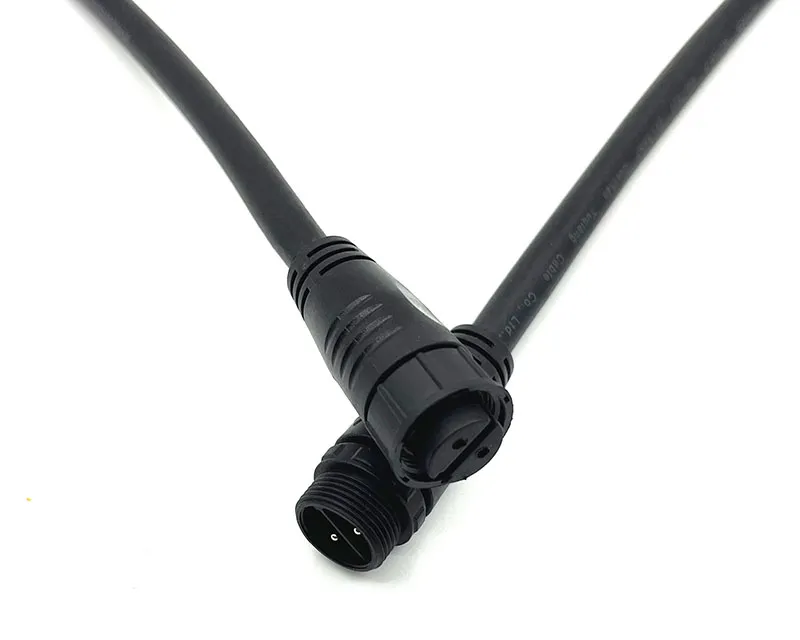

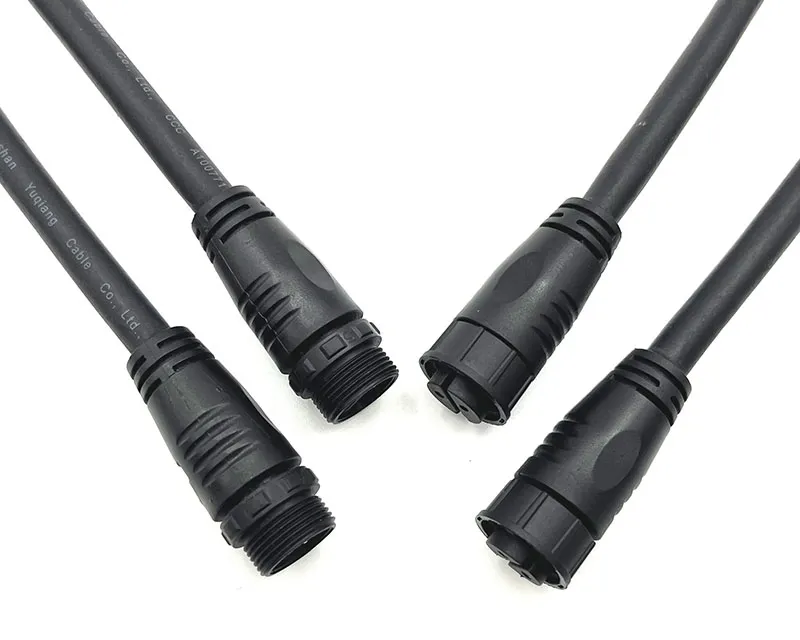

M18 Type Molded Cable Connector

The M18 Molded Cable Connector delivers exceptional value through its superior engineering and durability. The IP68 rating provides peace of mind for permanent outdoor installation, even in flood-prone areas. The molded cable design eliminates the most common failure point in outdoor connectors by creating a permanent, watertight seal between cable and connector body. This design significantly reduces maintenance costs and extends system lifespan. The gold-plated contacts ensure minimal voltage drop and prevent corrosion, crucial for maintaining optimal lighting performance over time. The UV-r...

Inquiry

E-mail：sales01@szjiayunkang.com

WhatsApp：+86 13378428166

Detailed Description

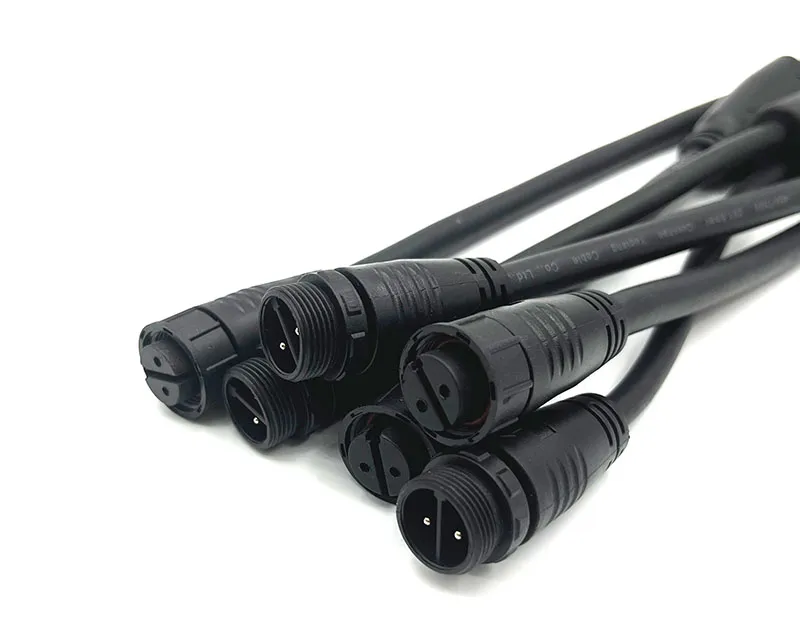

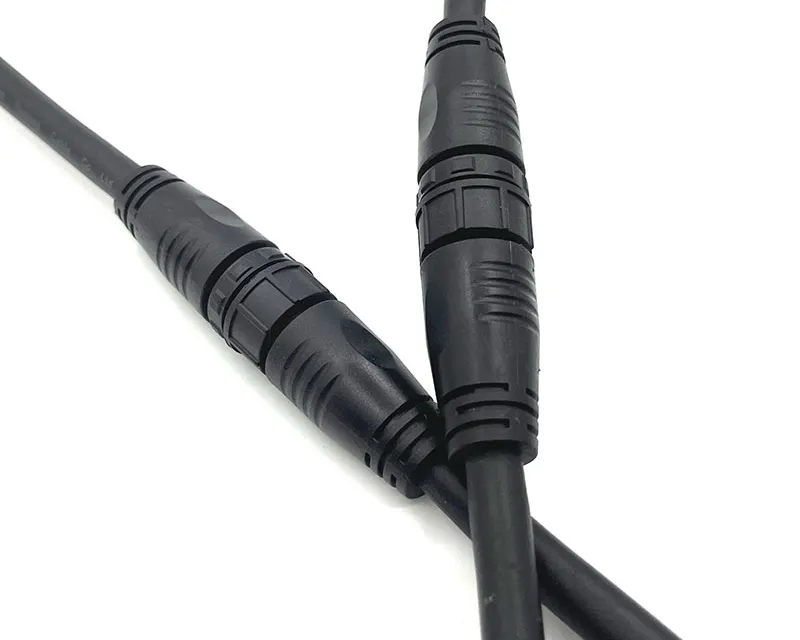

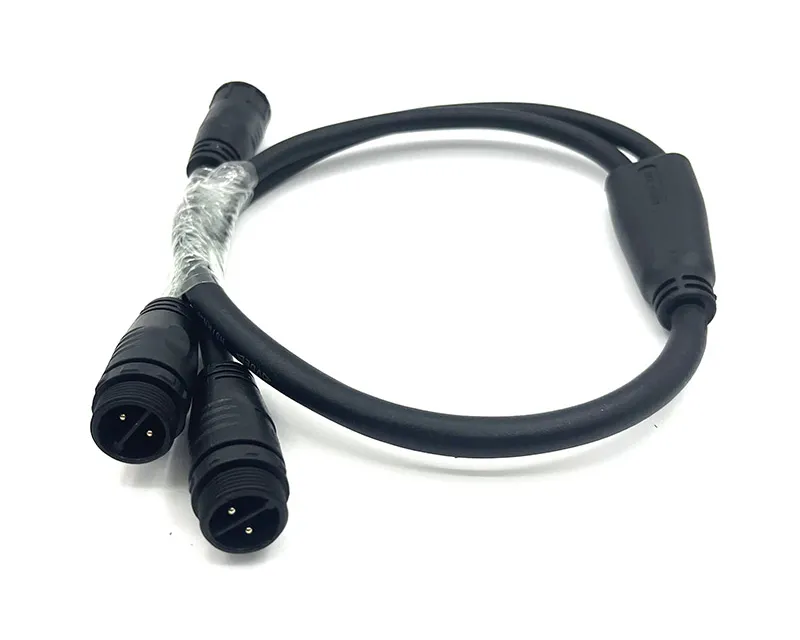

Product Description
The M18 Type Molded Cable Connector represents the pinnacle of reliability and performance in outdoor lighting connectivity solutions. Engineered specifically for harsh environmental conditions, this connector combines robust construction with superior waterproof protection to ensure uninterrupted performance in outdoor lighting applications. Featuring a precision-molded cable interface and IP68-rated waterproof protection, the M18 connector provides complete defense against moisture ingress, dust penetration, and mechanical stress. The connector's innovative design incorporates gold-plated contacts for optimal conductivity and corrosion resistance, while the reinforced strain relief system protects against cable pull-out and damage. Ideal for professional landscape lighting, architectural illumination, and security lighting systems, this connector delivers exceptional reliability where it matters most.

Advanced Engineering Features

IP68 Waterproof Excellence: Superior protection against prolonged water immersion up to 1.5 meters for continuous operation in wet conditions
Molded Cable Integration: Seamless cable-to-connector fusion prevents moisture wicking and ensures strain relief
Gold-Plated Brass Contacts: Enhanced conductivity with superior corrosion resistance for consistent performance
360° EMI Shielding: Comprehensive electromagnetic interference protection for signal integrity
Temperature Resilience: Operational range from -40°C to +105°C suitable for extreme climates
UV-Resistant Housing: Special polymer compound prevents degradation from sun exposure
Quick-Lock Mechanism: Tool-free installation with audible connection confirmation

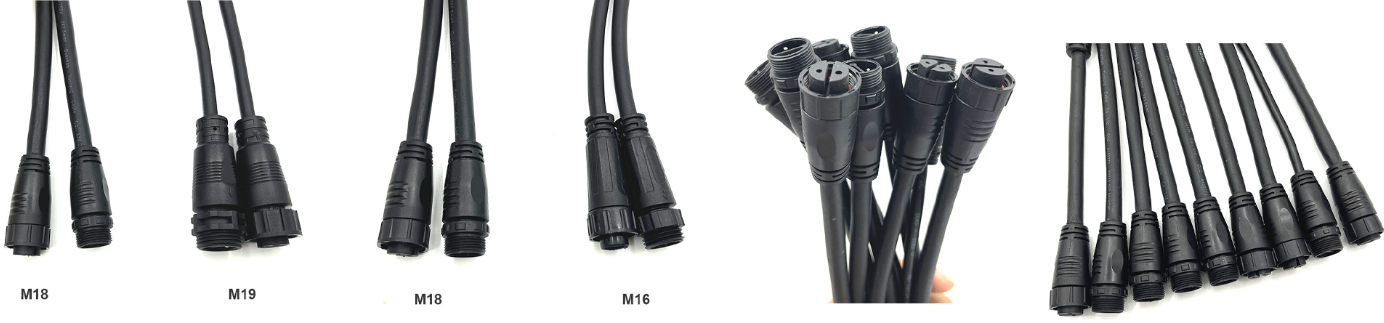

Multi-Pin Configurations: Available in 3-pin, 4-pin, and 5-pin versions for various lighting requirements

Applications:

M18 connector is mainly used in LED industry, smart lighting, street lights, breeding, plant lights, lasers, stage lights, furniture, display screens, etc.

It has the characteristics of small appearance, threaded connection and high protection level.

Professional landscape lighting systems
Architectural and facade illumination
Park and public space lighting installations
Security and motion-activated lighting
Garden and pathway lighting solutions
Fountain and water feature lighting
Outdoor hotel and resort lighting
Historical building illumination projects
Municipal street and pathway lighting
Outdoor restaurant and commercial lighting

Features:

1. Using high-performance thermoplastic PA material, which has high strength and high temperature resistance.

2. Solid milled copper needles and copper holes are adopted, and the performance is more reliable.

3. Threaded connection, easy to install and maintain, protection grade up to IP67/68;

4. Multi-core design, available for different options;

5. The wire length can be customized.

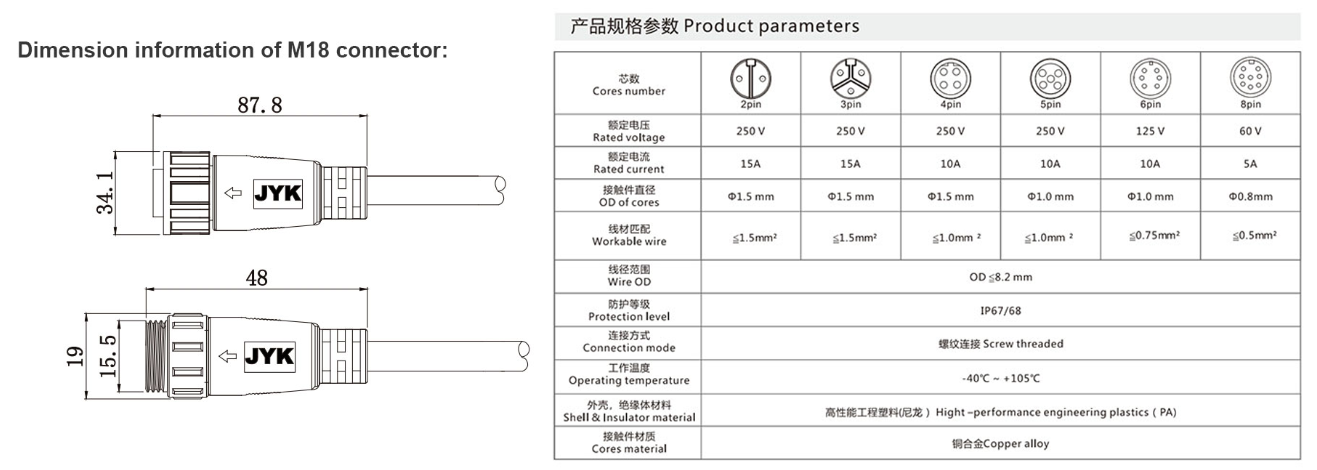

Parameters:

Cores layout:	2 pin	3 pin	4 pin	5 pin	6 pin	8 pin
Rated voltage:	250V	250V	250V	250V	125V	60V
Rated current:	15A	15A	10A	10A	10A	5A
OD of cores:	Φ1.5mm	Φ1.5mm	Φ1.5mm	Φ1.0mm	Φ1.0mm	Φ0.8mm
Workable wire:	≤1.5mm²	≤1.5mm²	≤1.0mm²	≤1.0mm²	≤0.75mm²	≤0.5mm²
Wire OD:	OD ≤ 8.2mm
Protection level:	IP67/68
Connection mode:	Screw threaded
Operating temperature:	-40℃ ~ +105℃
Shell & insulator material:	High-performance engineering plastics (PA)
Cores material:	Copper alloy

Technical Frequently Asked Questions

Q1: How does IP68 rating differ from IP67 for outdoor lighting applications?
A: While both provide excellent protection, IP68 offers superior performance for prolonged water immersion. IP67 protects against temporary immersion (30 minutes at 1 meter), while IP68 guarantees continuous protection at greater depths (1.5 meters indefinitely), making it ideal for permanent outdoor lighting installations.

Q2: What is the benefit of molded cable construction?
A: Molded construction creates a permanent, watertight seal between cable and connector, preventing moisture wicking along cable strands - the primary cause of failure in outdoor connectors. This significantly enhances reliability and lifespan.

Q3: Can the connector handle high-power LED lighting systems?
A: Absolutely. The M18 connector is rated for up to 250V and 8A, making it suitable for high-power LED arrays and conventional lighting systems. The gold-plated contacts ensure minimal power loss even at maximum capacity.

Q4: How does the UV-resistant housing benefit outdoor applications?
A: Standard connector materials degrade under UV exposure, becoming brittle and discolored. Our special polymer compound maintains flexibility and appearance for years, ensuring both functional and aesthetic longevity.

Q5: What makes this connector suitable for extreme temperatures?
A: The materials are specifically selected for thermal stability. The housing maintains flexibility in extreme cold while resisting deformation in high heat, ensuring reliable performance in diverse climatic conditions.

Q6: Is professional installation required?
A: While designed for professional installers, the quick-connect mechanism allows for straightforward installation. However, we recommend professional installation to ensure optimal performance and warranty coverage.
