Product Description

The M19 Series Waterproof Connector represents the next generation of high-performance power connectivity solutions specifically engineered for modern energy storage systems. This robust connector system features precision-machined male and female plugs with 4, 5, and 8-core configurations, designed to meet the demanding requirements of commercial and industrial energy storage applications. With an IP68 protection rating and superior electrical performance, the M19 connector ensures reliable power transmission in the most challenging environments, including outdoor installations, high-vibration scenarios, and extreme temperature conditions. The innovative push-pull locking mechanism combined with visual connection verification makes installation both quick and foolproof, while the corrosion-resistant materials guarantee long-term reliability in renewable energy applications.

Product parameters

Product Model: M19 Threaded version

Number of cores :2/3/4/5/8/9/3+9 pins

Shell material: Nylon

Rated voltage :250V

Rated current :5-20A

Waterproof rating :IP65/IP67

Operating temperature :-40°C+105 °C

Cable diameter: Medium 5.8- medium 9.2mm

Connection method: Self-locking plug and unplug

Product Features
Advanced Sealing Technology
Triple-sealing system incorporating silicone O-rings, radial shaft seals, and interface sealing ensures complete environmental protection. The multi-barrier design prevents moisture ingress even under high-pressure washdown conditions.

High-Power Transmission Capability
Optimized for energy storage applications with current carrying capacity up to 16A per pin. The large contact cross-section and silver plating minimize power loss and heat generation during high-current transmission.

Quick-Lock Push-Pull Mechanism
Patented bayonet coupling system enables secure mating with a simple 90° rotation. Audible click confirmation and color-coded alignment indicators ensure proper connection without tools.

EMI/RFI Shielding
Integrated 360° electromagnetic shielding protects against interference in electrically noisy environments, ensuring clean power transmission for sensitive energy storage equipment.

Polarization and Misinsertion Protection
Keyed polarization system prevents incorrect mating and protects equipment from damage. Color-coded cores and numbered terminals simplify installation and maintenance.

Vibration Resistance
Advanced mechanical design with anti-vibration locking mechanism maintains connection integrity in high-vibration environments such as mobile energy storage systems and industrial machinery.

Product Advantages
Enhanced Safety Performance
The combination of IP68 protection, high dielectric strength, and touch-safe design ensures operator safety and system reliability in demanding energy storage applications.

Reduced Installation Time
The quick-connect system reduces installation time by up to 60% compared to traditional Threaded Connectors, while the intuitive design minimizes training requirements.

Superior Power Efficiency
Low contact resistance and optimized power transmission characteristics ensure minimal energy loss, contributing to higher overall system efficiency in energy storage applications.

Maintenance-Free Operation
The sealed construction and corrosion-resistant materials eliminate the need for periodic maintenance, reducing lifetime ownership costs.

Future-Proof Design
Multiple core configurations and compatibility with various cable types provide flexibility for system upgrades and modifications without requiring connector replacement.

Application Fields
Energy Storage Systems (ESS)

• Battery management system connections

• Power conversion system interfaces

• Energy storage cabinet interconnections

• Solar energy storage integration

Electric Vehicle Infrastructure

• EV charging station power connections

• Battery swap station interfaces

• Charging pile internal wiring

• Power distribution systems

Industrial Power Systems

• Motor drive connections

• PLC power interfaces

• Industrial control cabinet wiring

• Machine tool power transmission

Renewable Energy Applications

• Solar inverter connections

• Wind turbine power systems

• Energy storage power stations

• Microgrid interconnection systems

Outdoor Power Equipment

• Landscape lighting systems

• Outdoor power distribution

• Emergency power systems

• Temporary power installations

Frequently Asked Questions (FAQ)

Q1: What is the difference between IP67 and IP68 ratings?
A: While both provide dust protection, IP68 offers superior water resistance. Our M19 connector with IP68 rating can withstand continuous immersion up to 1.5 meters depth, unlike IP67 which is limited to temporary immersion.

Q2: Can different core configurations be mated together?
A: No, the polarization system prevents mating between different core configurations. This safety feature ensures correct electrical connections and prevents equipment damage.

Q3: What cable types are recommended for high-current applications?
A: We recommend using silicone rubber or cross-linked polyethylene cables with appropriate current ratings. The connector accepts cable diameters from 6mm to 12mm.

Q4: How does the push-pull mechanism perform in high-vibration environments?
A: The patented bayonet locking mechanism with spring-loaded contacts maintains secure connections even under severe vibration conditions, exceeding industry standards for vibration resistance.

Q5: Are custom pin arrangements available?
A: Yes, we offer custom pin configurations and specialized contact arrangements for specific application requirements. Please contact our technical team for customization options.

Q6: What maintenance is required for long-term performance?
A: The connector is designed for maintenance-free operation. However, we recommend visual inspection every 12 months and cleaning of contact surfaces if exposed to corrosive environments.

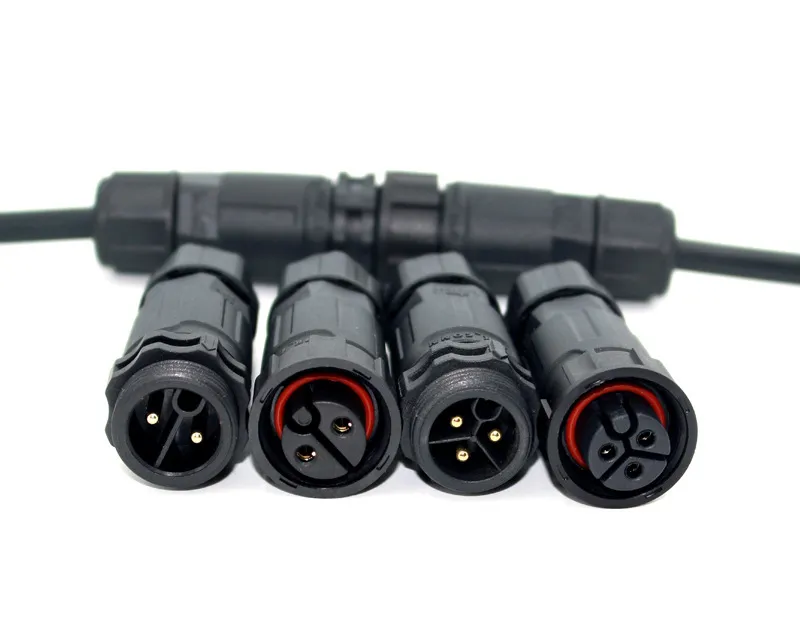

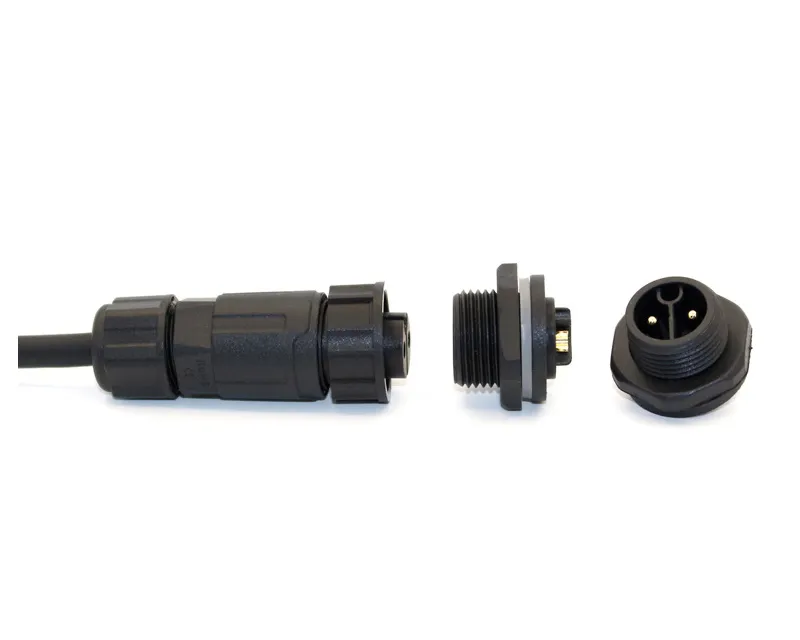

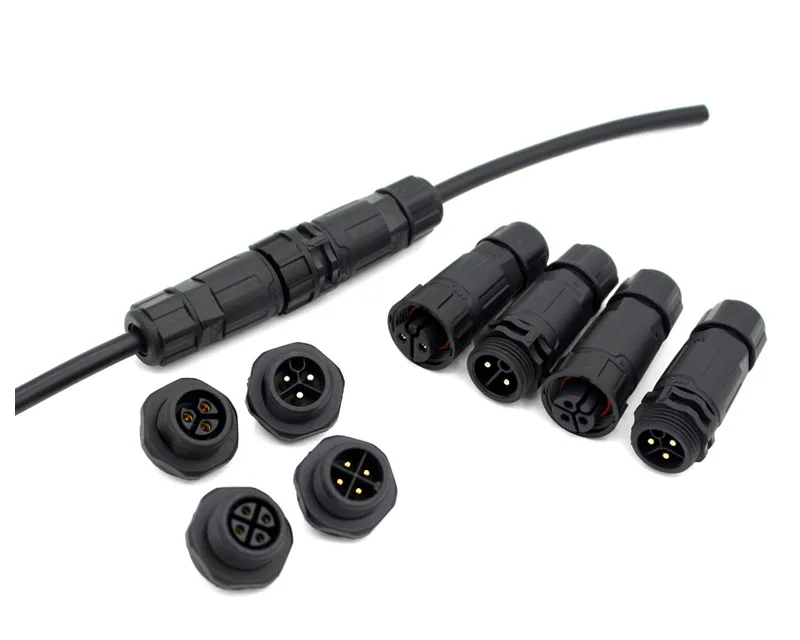

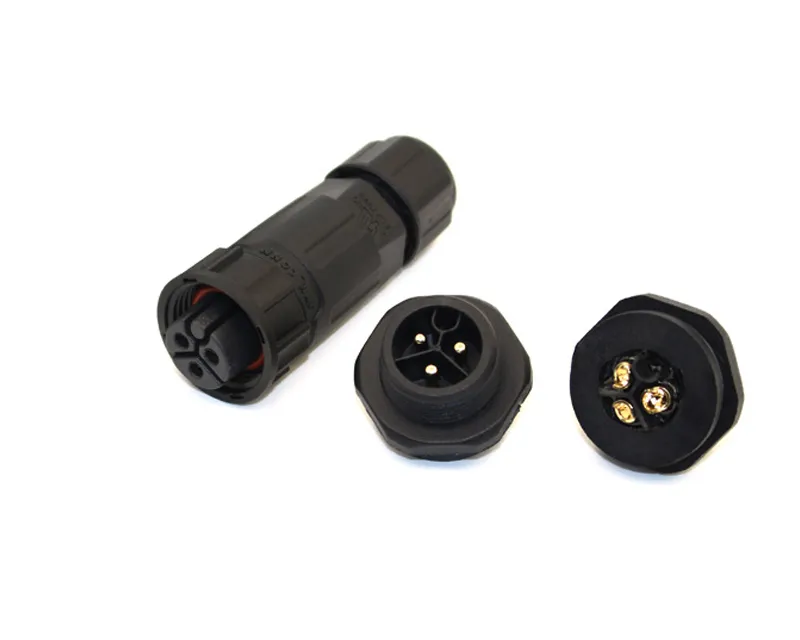

Display of waterproof plug
