In an increasingly interconnected world, the demand for robust, reliable, and compact connectivity solutions is paramount. Our M8 Male IP67 Outdoor Cable Connector is engineered to meet this challenge head-on. Designed for industrial automation, outdoor lighting, and harsh environmental applications, this connector ensures your equipment remains operational, safe, and efficient. It represents the perfect fusion of precision engineering and durable design, providing a steadfast link for power and signal transmission where it's needed most.

Product Description

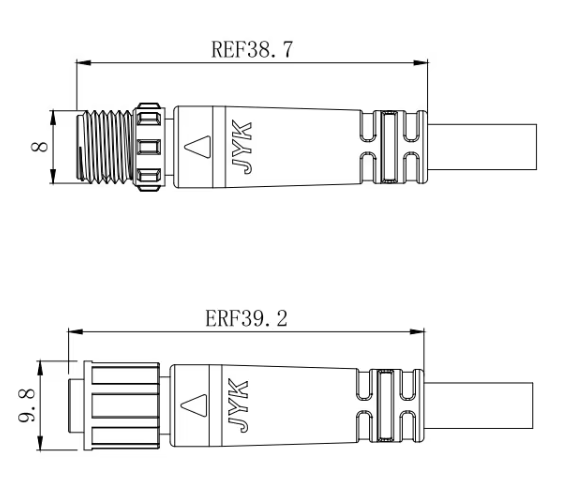

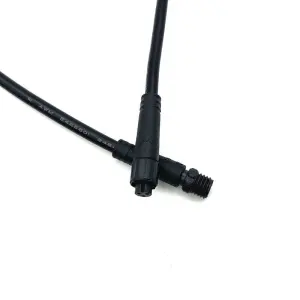

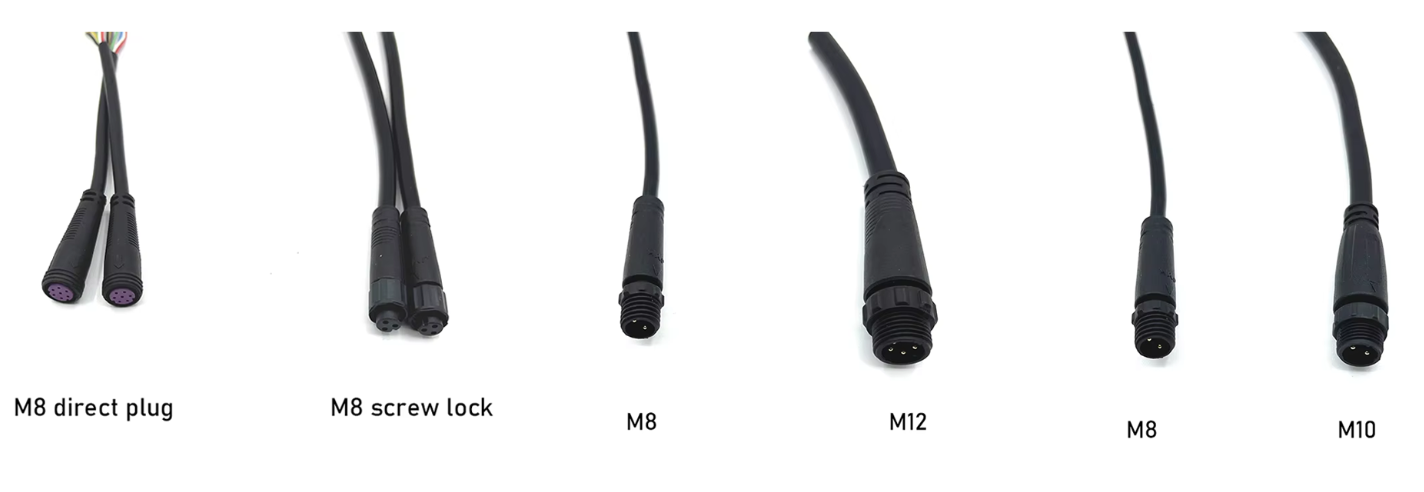

The M8 Male Cable Connector is a compact, circular connector with a threaded locking mechanism, featuring a pre-wired cable on one end. The "Male" designation refers to the pin contacts housed within the connector body. It is specifically designed with an IP67 (Ingress Protection) rating, certifying that it is completely protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. This makes it an ideal solution for applications exposed to moisture, dust, cleaning processes, and volatile outdoor conditions. The connector is typically available in 3-pin, 4-pin, or 5-pin configurations to support a wide range of wiring needs, from simple power supply to sensor-actuator networks and data communication. The integrated cable is manufactured with high-quality, flexible materials to ensure longevity even with constant movement or in fixed installations.

Key Product Features

Superior IP67 Protection: Guarantees complete dust-tight performance and protection against temporary immersion, ensuring reliability in wet and dusty conditions.

Rugged Construction: The connector body is typically constructed from high-grade engineering plastics or metal, offering excellent resistance to impact, corrosion, and UV radiation.

Secure Threaded Coupling: The robust screw-locking mechanism prevents accidental disconnection due to vibration or pulling, providing a stable and secure connection.

Excellent EMI Shielding: Options with metal shells and effective cable shielding provide superior protection against electromagnetic interference, crucial for signal integrity in noisy industrial environments.

High-Quality Cable: The integrated cable features fine-stranding copper conductors, high-grade PVC or PUR jacket offering excellent flexibility, oil resistance, and durability.

Wide Temperature Range: Engineered to perform consistently in a broad range of temperatures, from cold outdoor settings to hot industrial floors.

Color Options: Available in standard industrial colors like black or gray for easy identification and aesthetic matching.

Competitive Advantages

While features define what a product is, advantages explain why it is the best choice for your business. Our M8 Male IP67 Connector delivers tangible benefits that impact your bottom line.

Maximized System Uptime: By providing a fail-safe connection in harsh conditions, this connector drastically reduces machine downtime and maintenance costs caused by connection failures.

Enhanced Operational Safety: The superior sealing prevents short circuits and electrical failures, protecting both your personnel and expensive connected equipment.

Long-Term Cost Efficiency: The durable materials and construction translate into a longer service life and lower replacement frequency, offering a better return on investment over time.

Simplified Installation & Maintenance: The pre-wired design saves valuable installation time. The clear coding and robust design make field servicing and replacements quick and straightforward.

Application Versatility: A single, reliable product can be standardized across various applications—from factory sensor networks to outdoor LED signage—simplifying procurement and inventory management.

Application Fields

This connector is a versatile solution across numerous industries that require compact, sealed connectivity.

Industrial Automation: Connecting sensors, actuators, encoders, and PLCs in manufacturing and packaging machinery.

Outdoor & Industrial LED Lighting: Powering LED street lights, architectural facade lighting, stadium lights, and high-bay industrial lighting.

Automation & Robotics: Providing reliable power and signal transmission for robotic arms, automated guided vehicles (AGVs), and motion control systems.

Telecommunications & Network Infrastructure: Used in base stations and outdoor communication devices where environmental sealing is critical.

Renewable Energy Systems: Interconnecting components in solar power installations and wind turbine control systems.

Transportation & Automotive: Applicable in vehicle sensor systems, charging inlets for micro-mobility, and internal machine connectivity.

Building Automation: For outdoor security cameras, access control systems, and environmental monitoring sensors.

Frequently Asked Questions (FAQ)

Q1: What does the "IP67" rating mean for my application?
A: IP67 means the connector is "dust-tight" and can be "immersed in 1 meter of water for 30 minutes." In practice, this makes it suitable for outdoor use, wash-down areas in food processing, and any environment with exposure to moisture or dust.

Q2: What is the difference between 3-pin, 4-pin, and 5-pin M8 Connectors?
A: The number of pins defines the connector's function. A 3-pin is commonly used for power (e.g., AC/DC power for devices). A 4-pin is often used for sensors and devices that require both power and a signal (like PNP/NPN sensors). A 5-pin is typically used for industrial Ethernet protocols like PROFINET or EtherNet/IP.

Q3: Can this connector be used with Ethernet signals?
A: A standard 4-Pin M8 is not designed for Ethernet. For industrial Ethernet communication, you would require a specific 4-pin D-coded or, more commonly, an 8-pin M8 connector. Please confirm your protocol requirements.

Q4: What is the maximum voltage and current rating?

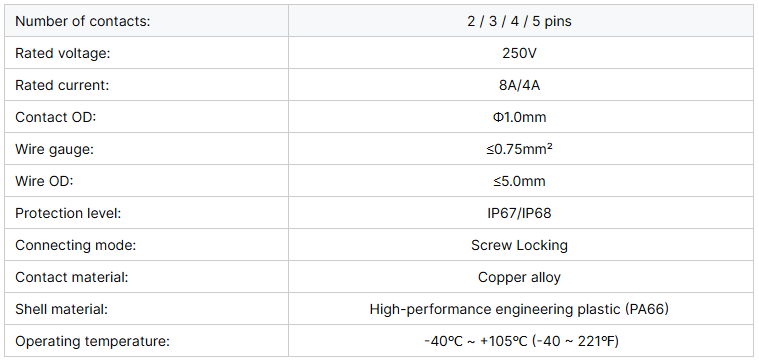

A: Ratings can vary by pin configuration and wire gauge. Typically, our M8 connectors are rated for up to 250V and currents up to 4A. Please refer to the specific product datasheet for precise electrical ratings.

Q5: Is the cable available in different lengths and jacket materials?
A: Yes. We offer various standard cable lengths and can provide options with flexible PUR (polyurethane) jackets for superior resistance to abrasion, oil, and chemicals, or standard PVC for general purpose use.

Q6: How do I ensure a proper IP67 seal when mating the connector?
A: Ensure the mating female connector's seal (O-ring) is clean and undamaged. Hand-tighten the coupling nut, then use a wrench for a final quarter to half turn to achieve a secure, watertight seal without over-tightening.
