Product Description

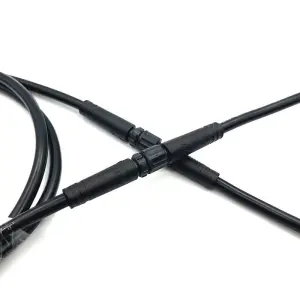

The M8 Waterproof LED Lighting Cable Connector is a premium, compact connectivity solution engineered specifically for the rigorous demands of modern LED lighting systems. Designed to ensure uninterrupted performance, this connector series provides a secure and stable electrical connection in environments where moisture, dust, vibration, and corrosion are constant challenges. Featuring an M8 x 1.0 thread interface, these connectors offer a robust mechanical lock, preventing accidental disconnection. The core of its design is a superior IP67-rated sealing, which guarantees complete protection against temporary immersion in water and the ingress of dust, making it an ideal choice for both indoor and outdoor applications. Available in pre-wired cable assembly formats with various conductor counts, wire gauges, and standard termination options, our M8 Connectors simplify installation and enhance the reliability of your lighting projects, from architectural accents to industrial machine lighting.

Product Features

Robust Environmental Sealing: Achieves an IP67 protection rating, ensuring the connector is totally dust-tight and can withstand immersion in water up to 1 meter for 30 minutes.

Compact M8 Form Factor: The small footprint is ideal for space-constrained applications on LED fixtures, light bars, and control systems without compromising on performance.

Durable Construction: The connector body is typically manufactured from high-grade PA66 (Nylon) material, offering excellent resistance to impact, chemicals, and UV radiation.

Secure Locking Mechanism: The reliable screw-locking mechanism (M8 threading) ensures a vibration-proof connection that will not loosen over time, even in high-traffic or mobile installations.

Corrosion-Resistant Components: Metal parts are often available with nickel-plated brass or stainless-steel options, providing superior resistance to rust and corrosion in humid or saline environments.

High-Performance Contacts: Precision-engineered gold-plated pins ensure low contact resistance, stable current delivery, and superior corrosion resistance for optimal signal integrity and long-term conductivity.

Flexible Cable Options: Available with a range of jacket materials, such as PVC or PUR, with PUR offering enhanced resistance to oils, abrasion, and chemicals for tougher industrial settings.

Wide Operating Temperature Range: Designed to perform reliably in a broad spectrum of temperatures, typically from -25°C to +85°C, ensuring functionality in both freezing and high-heat conditions.

Product Advantages

Enhanced System Longevity: By effectively sealing out moisture and contaminants, our M8 connectors directly contribute to the extended lifespan and reduced maintenance needs of your entire LED lighting system. This translates to lower total cost of ownership and fewer service interruptions.

Uncompromised Safety: The superior waterproof and dustproof design significantly reduces the risk of short circuits, electrical failures, and potential fire hazards, ensuring a safer operating environment for personnel and equipment.

Streamlined Installation and Maintenance: The plug-and-play nature of pre-wired cable assemblies drastically reduces installation time and complexity. This allows for quicker field replacements and system modifications, minimizing downtime.

Consistent Light Output: Stable and secure connections prevent flickering, voltage drops, and intermittent operation, guaranteeing consistent and reliable illumination from your LED fixtures throughout their operational life.

Exceptional Mechanical Durability: The robust design withstands physical stress, including constant mating/unmating cycles, cable pulling, and exposure to vibrations commonly found in automotive, machinery, and conveyor system applications.

Global Market Compatibility: Our products are designed to meet international electrical and safety standards, making them a trusted and versatile component for global supply chains and product designs.

Product Application Fields

The versatility and robustness of the M8 Waterproof LED Connector make it suitable for a wide array of applications, including but not limited to:

Industrial Automation & Machinery: Ideal for task lighting on CNC machines, control cabinets, robotic arms, and assembly lines where coolant, oil, and dust are present.

Outdoor & Architectural Lighting: Perfect for waterproof connections in landscape lighting, garden spotlights, facade illumination, and outdoor signage.

Commercial & Retail Lighting: Used in display case lighting, museum accent lighting, and other applications where a reliable, low-voltage connection is needed.

Automotive and Vehicle Lighting: Excellent for interior and exterior lighting in cars, trucks, buses, and agricultural vehicles, providing resistance to vibration and weather exposure.

LED Strip and Linear Lighting Systems: Serves as a reliable extension and connection point between segments of LED strips in coves, shelving, and under-cabinet lighting.

Marine and RV Lighting: Suitable for low-voltage lighting systems on boats, yachts, and recreational vehicles, resisting humidity and salt spray.

Sensor and Control System Integration: Often used to connect peripheral devices like photoelectric sensors or control units that are part of a larger automated lighting system.

Product FQA

Q1: What does the IP67 rating mean for my application?
A: An IP67 rating means the connector is completely protected from dust (6) and can be temporarily submerged in up to 1 meter of water (7) without leakage. This makes it suitable for outdoor use, wet conditions, and environments where wash-downs are common.

Q2: What is the difference between PVC and PUR cable jackets?
A: PVC jackets offer good general-purpose flexibility and basic protection. PUR (Polyurethane) jackets are more advanced, providing excellent resistance to oil, chemicals, abrasion, and hydrolysis, making them the preferred choice for harsh industrial settings.

Q3: How many pins are typically available, and what is the current rating?
A: M8 connectors are commonly available in 3-pin, 4-pin, and 5-pin configurations. The standard current rating is typically up to 4 Amps per pin, which is well-suited for most LED lighting applications. Always check the specific datasheet for your model.

Q4: Are these connectors compatible with other brands of M8 connectors on the market?
A: Our M8 connectors are manufactured to standard industry dimensions (M8 x 1.0 thread) and pinouts, ensuring mechanical compatibility with most standard M8 interfaces. For optimal performance and guaranteed IP rating, we recommend using mated pairs from our product line.

Q5: Can I request custom cable lengths or specific wire colors?
A: Yes, we specialize in providing customized solutions. We can manufacture connectors with your required cable length, conductor color coding, and specific termination types to seamlessly integrate with your system design.
