Product Description

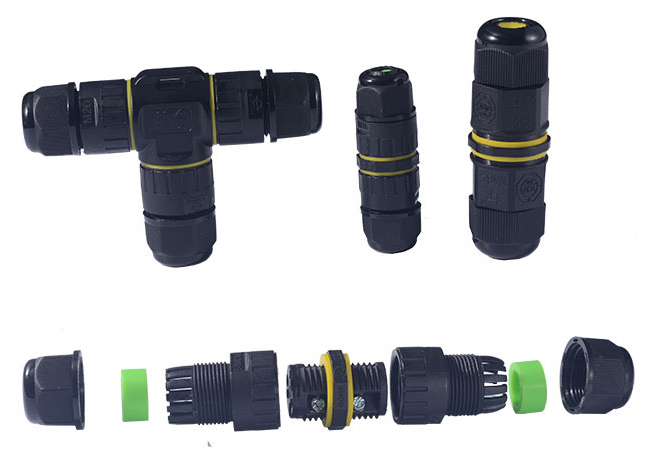

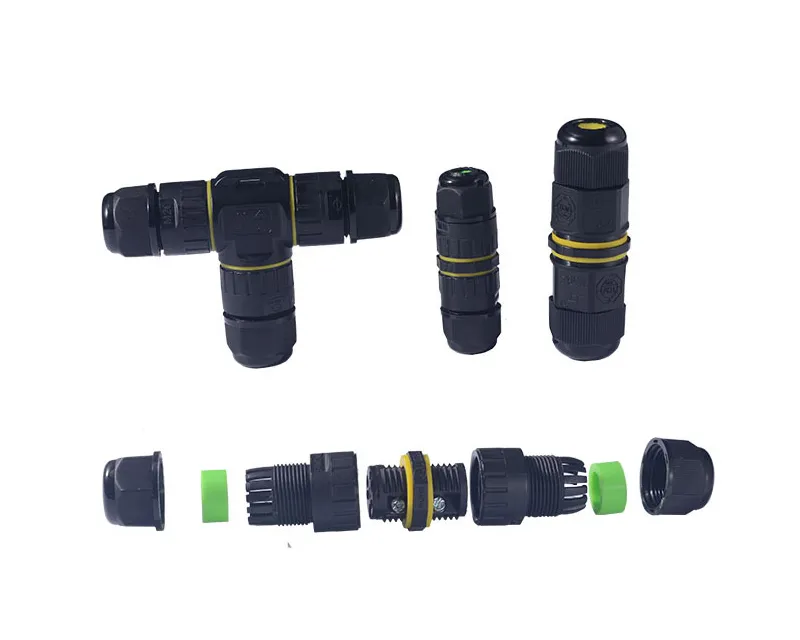

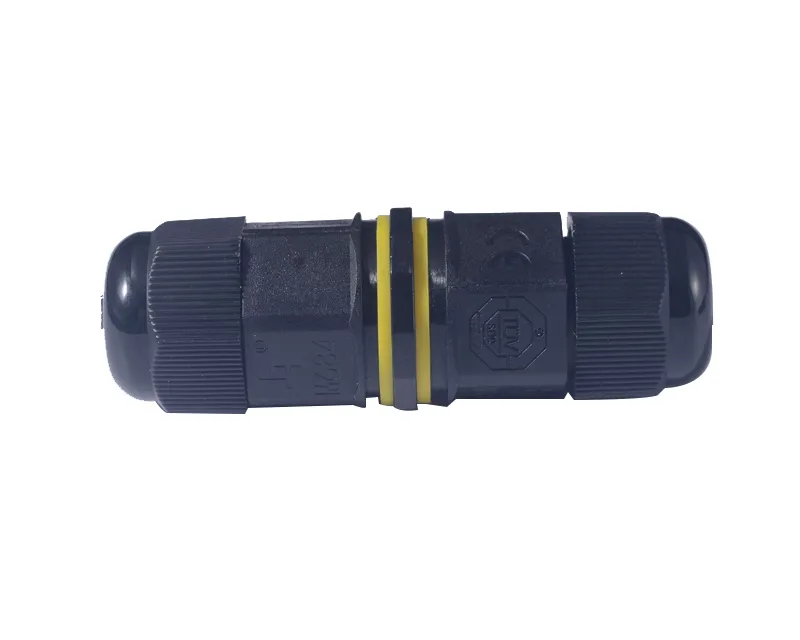

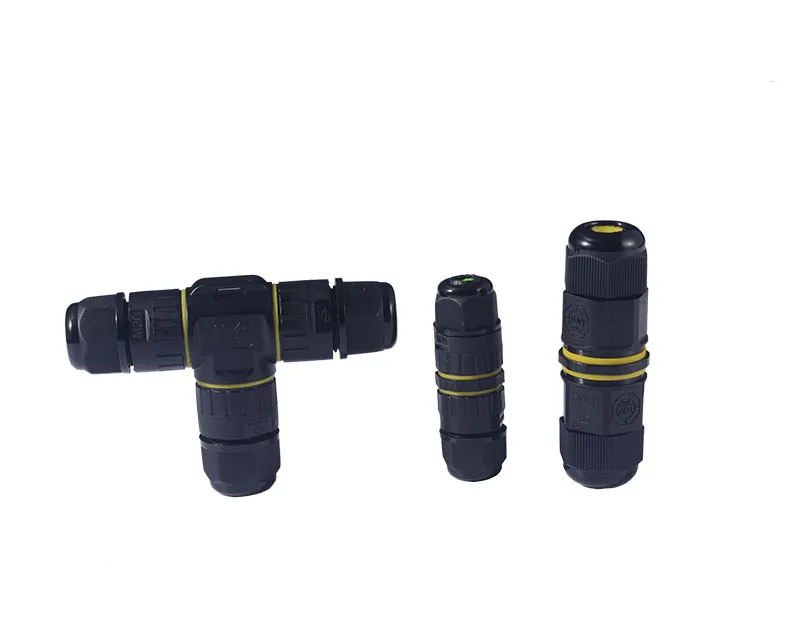

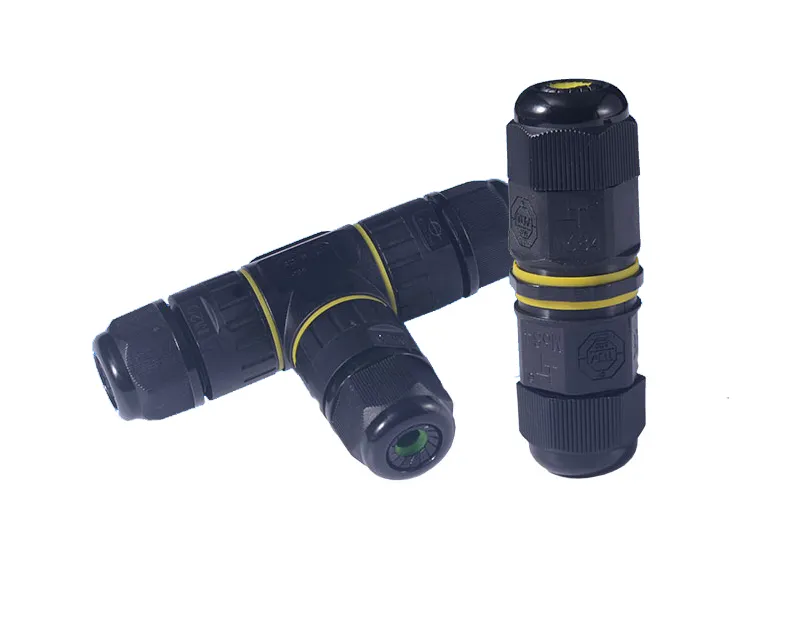

Our Aviation Plug Series Outdoor LED waterproof connector represents the pinnacle of reliable connectivity solutions for demanding outdoor lighting applications. Engineered with military-grade precision, this connector combines robust aviation plug technology with advanced waterproofing capabilities to deliver unmatched performance in harsh environmental conditions. The connector features a multi-pin design with corrosion-resistant brass contacts and high-grade silicone seals, ensuring complete protection against moisture, dust, and extreme weather conditions. Specifically designed for professional LED lighting systems, this connector maintains stable electrical performance while withstanding temperature fluctuations, UV exposure, and mechanical stress, making it the ideal choice for critical outdoor lighting infrastructure.

Product parameters

number of contact：2pin,3pin,4pin

rated operation voltage：450V

npulse withstand voltage：2500V

rated current：16A

operation temperature：-20~80℃

insulation resistance：100M ohms MIN.

contact resistance：10M ohms MAX.

mechanical operation：100 CYCLES MIN

Product Features
Military-Grade Construction
Features aviation-style threaded coupling mechanism with stainless steel locking ring for vibration-proof connections that won't loosen under mechanical stress or wind loads.

Advanced Sealing System
Triple-seal protection with silicone O-rings, internal potting cavity, and cable gland strain relief ensures complete environmental protection against water, dust, and corrosive elements.

Superior Contact Design
Precision-machined brass contacts with 3μm gold plating provide low resistance and excellent conductivity, preventing voltage drop and ensuring consistent LED performance.

UV-Resistant Housing
Special engineering plastic with UV inhibitors prevents degradation from sunlight exposure, maintaining structural integrity and appearance over years of outdoor use.

Quick-Connect System
Color-coded and keyed connection system prevents mis-mating and enables fast, tool-free installation even in low-light conditions.

Thermal Management
Designed with heat-resistant materials that withstand high temperatures generated by high-power LED systems without performance degradation.

Product Advantages
Exceptional Reliability
The aviation plug design ensures 100% connection reliability with positive locking mechanism that prevents accidental disconnection, crucial for safety-critical lighting applications.

Long-Term Durability
Constructed with corrosion-resistant materials and superior sealing technology, offering 3-5 times longer service life than standard outdoor connectors in harsh environments.

Maintenance-Free Operation
IP68 rating and robust construction eliminate the need for regular maintenance, significantly reducing lifetime ownership costs for large-scale lighting installations.

Enhanced Safety
The fully insulated design and secure locking mechanism prevent electric shock hazards and ensure safe operation in public spaces and wet locations.

Energy Efficiency
Low contact resistance and superior conductivity minimize power loss, ensuring maximum energy efficiency for sustainable LED lighting systems.

Global Compliance
Meets international standards including UL, CE, and RoHS certifications, suitable for worldwide deployment in various climate conditions.

Application Fields
Urban Infrastructure Lighting

• Street lighting systems

• Tunnel and underpass lighting

• Bridge and architectural lighting

• Public space illumination

Commercial Applications

• Parking lot lighting

• Building facade lighting

• Signage and display lighting

• Security lighting systems

Specialized Environments

• Marine and coastal lighting

• Swimming pool illumination

• Fountain and water feature lighting

• Industrial area lighting

Entertainment Industry

• Stage and event lighting

• Theme park installations

• Sports venue lighting

• Film production equipment

Frequently Asked Questions (FAQ)

Q1: What makes this different from standard waterproof connectors?
A: Our aviation plug design features military-grade construction with triple sealing system, superior materials, and proven reliability that exceeds standard Industrial Connectors.

Q2: Can it handle saltwater environments?
A: Yes, the corrosion-resistant materials and IP68 rating make it ideal for marine applications and coastal areas with salt spray exposure.

Q3: What is the maximum cable size supported?
A: The connector accommodates cables from 4mm to 10mm diameter, with different gland sizes available for various cable types.

Q4: How many mating cycles can it withstand?
A: Rated for minimum 500 mating cycles while maintaining waterproof integrity, far exceeding standard industrial connectors.

Q5: Is it compatible with high-power LED systems?
A: Absolutely. Designed specifically for high-power LED applications with current rating up to 16A per contact and temperature resistance up to 125°C.

Q6: What safety certifications does it have?
A: The connector meets UL, CE, and RoHS standards, with IP68 certification for waterproof performance.
