Product Description

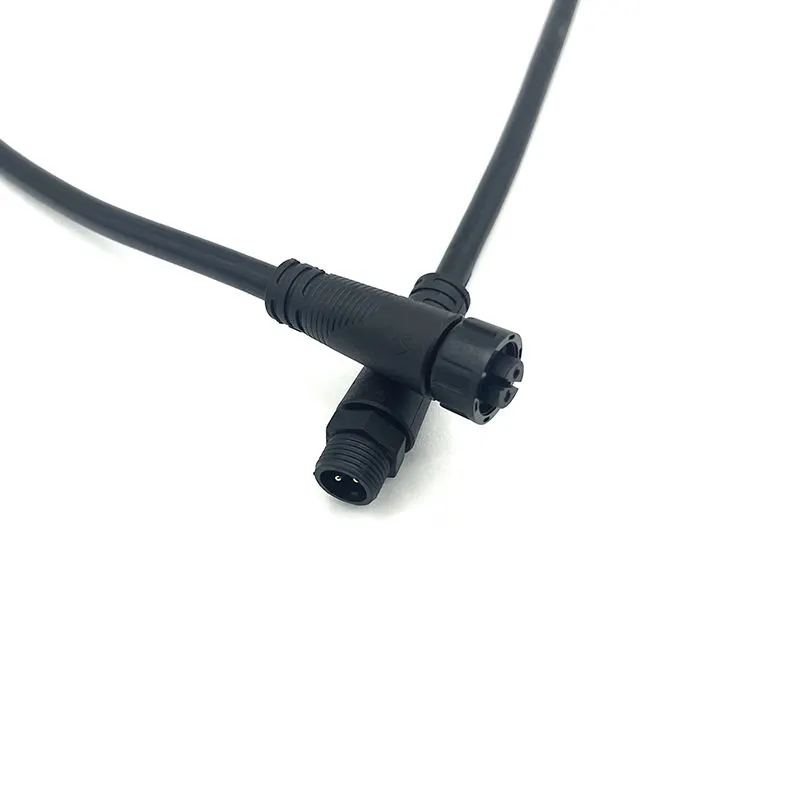

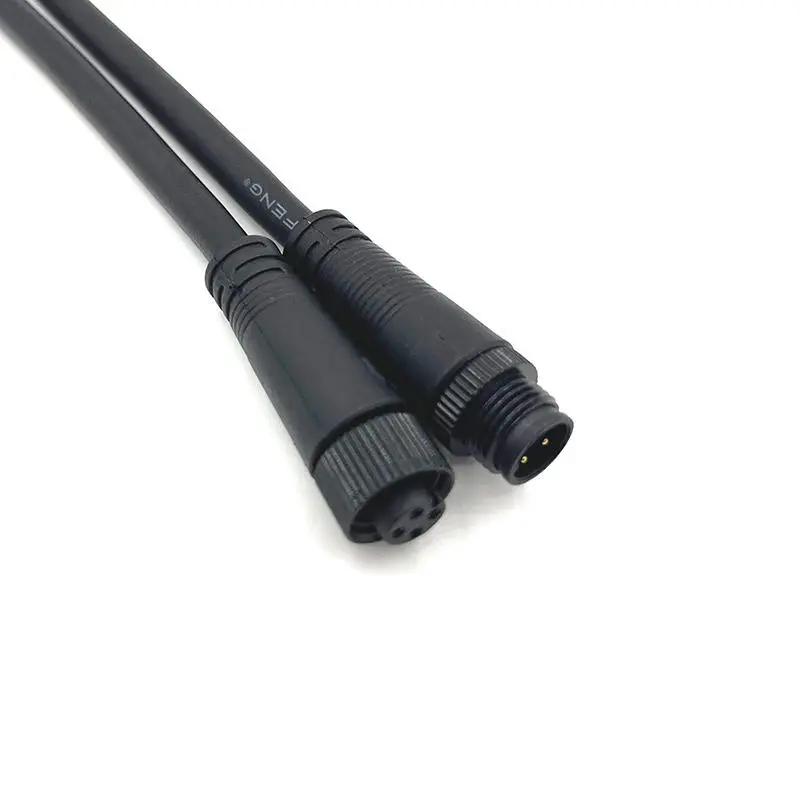

Our 2-pin and 3-pin LED waterproof connectors are engineered to provide a completely sealed, reliable, and user-friendly connection solution for a wide range of electrical applications. Designed with a robust male and female interface, these connectors ensure a secure lock and optimal performance even in the most demanding environments. The core of their design is a high-quality silicone rubber seal and a precision-engineered housing that effectively repels moisture, dust, and dirt. This makes them the ideal choice for outdoor lighting, industrial machinery, and any application where exposure to the elements is a concern. The distinct pin configurations (2-pin and 3-pin) offer flexibility for different circuit requirements, such as power and ground for 2-pin, or additional control lines like dimming or color-changing signals for 3-pin versions. Built to last, these connectors simplify installation while guaranteeing long-term operational stability.

Product Features

Advanced Sealing Technology: Features IP67 or higher rated waterproofing, utilizing multiple sealing points including an internal O-ring and a sealed connector body to prevent water and dust ingress.

Secure Locking Mechanism: The male and female connectors are equipped with a robust snap-lock or screw-lock system that ensures a vibration-proof connection, preventing accidental disconnection.

Corrosion-Resistant Materials: Constructed from high-grade PA66 (Nylon) material for the housing, which offers excellent resistance to UV radiation, chemicals, and extreme temperatures.

Excellent Electrical Properties: High-quality brass or phosphor bronze contacts with gold or tin plating ensure low resistance, high current-carrying capacity, and stable signal transmission.

Wide Operating Temperature Range: Consistently performs in temperatures from -40°C to 105°C, making it suitable for both frigid and high-heat environments.

Polarized Design: The connectors are designed to be polarized, preventing incorrect mating and potential short circuits, thereby enhancing installation safety.

Flexible Cable Compatibility: Available in standard AWG sizes (e.g., 18-20 AWG) to match common wire gauges used in LED and low-voltage applications.

Product Advantages

Enhanced Durability and Longevity: By effectively sealing out environmental hazards, these connectors significantly extend the lifespan of your LED fixtures and electrical systems, reducing maintenance costs and failure rates.

Simplified Installation and Maintenance: The plug-and-play design allows for quick and tool-free connections in the field. This saves valuable installation time and makes future servicing or system modifications straightforward.

Uncompromised Safety: The waterproof and dustproof nature eliminates risks of short circuits, electrical leakage, and corrosion, ensuring safe operation in wet locations like gardens, fountains, and outdoor signage.

Superior Performance Stability: Maintains a stable and low-resistance connection over time, which is critical for ensuring consistent brightness and color accuracy in LED lighting systems without voltage drop or flickering.

Versatility Across Industries: While ideal for LED applications, their robust design makes them a perfect fit for a broader range of uses, from automotive wiring to solar panel connections and marine electronics.

Cost-Effectiveness: The combination of long service life, reduced maintenance, and easy installation provides a superior total cost of ownership compared to non-waterproof or taped connections.

Application Fields

These waterproof pin connectors are indispensable in any scenario requiring a reliable electrical connection exposed to harsh conditions.

Outdoor LED Lighting: Perfect for connecting LED street lights, landscape lighting, garden lamps, floodlights, and architectural facade lighting.

LED Display Screens: Used for modular connections in outdoor and indoor LED billboards and video walls, protecting sensitive data and power lines.

Industrial Equipment: Provides secure wiring for control cabinets, sensors, motors, and automated machinery on the factory floor where moisture and dust are prevalent.

Automotive and Transportation: Ideal for wiring in vehicle lighting (headlights, taillights), RV systems, and trucking where vibration and weather resistance are key.

New Energy Systems: Commonly used in low-voltage DC connections for solar panel arrays, wind power systems, and energy storage battery connections.

Consumer and Commercial Use: Suitable for outdoor signage, swimming pool lights, fountain displays, and marine electronics on boats.

Frequently Asked Questions (FAQ)

Q1: What is the IP rating of these connectors?
Our standard 2-pin and 3-pin LED Connectors are rated IP67. This means they are fully protected against dust and can be immersed in water up to 1 meter for 30 minutes.

Q2: Can I use these for high-voltage AC applications?
These connectors are primarily designed for low-voltage DC applications, which are standard in LED lighting (e.g., 12V/24V/48V DC). Please check the product's voltage rating before using it with AC power or higher voltages.

Q3: How do I ensure the connector is properly sealed after assembly?
Before mating, ensure the rubber seal inside the cap is clean and properly seated. When connecting, push the male and female ends together firmly until you hear or feel a distinct "click," indicating the lock is engaged and the seal is compressed.

Q4: What is the difference between the 2-pin and 3-pin versions?
The 2-pin connector is typically used for basic power and ground connections. The 3-pin version adds an extra pin, which is commonly used for additional functions like a dimming signal (PWM), color-changing control (RGB), or a feedback signal in more complex systems.

Q5: Are these connectors reusable?
Yes, they are designed for multiple mating and unmating cycles. The locking mechanism and seals are durable enough to be disconnected and reconnected repeatedly during maintenance or reconfiguration without compromising the waterproof integrity.
