Product Description

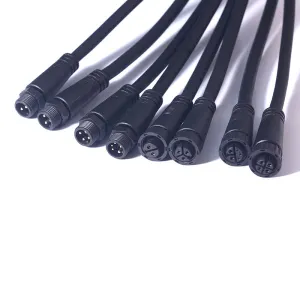

Shenzhen Jiayunkang Technology Co., Ltd. is a leading manufacturer of high-performance electrical connectivity solutions. Our Industrial Pin Terminal Connector is engineered to deliver superior performance in the most challenging environments. This connector series is designed for professionals who require a dependable, durable, and versatile connection system for industrial machinery, automation equipment, and outdoor applications.

Constructed with precision-machined contacts and high-grade engineering materials, these Pin terminal connectors facilitate secure power and signal transmission. They are an integral component for creating custom wiring harnesses in systems where vibration, moisture, dust, and extreme temperatures are common. Available in various pin configurations, sizes, and current ratings, this product line offers a standardized yet flexible solution for simplifying electrical assembly and ensuring long-term system integrity.

Prduct Features

Precision Engineering: Features machined pin terminals for a perfect fit and consistent electrical performance, ensuring low contact resistance and stable voltage.

Robust Housing: Constructed from high-grade, engineering-grade plastics or composite materials that offer excellent impact resistance and durability.

Secure Locking Mechanism: An audible click locking system prevents accidental disconnection caused by vibration or movement, guaranteeing a stable connection.

Corrosion-Resistant Contacts: Pin terminals are often plated with gold or tin to resist oxidation and corrosion, ensuring long-term conductivity and reliability.

Polarized Design: The housing is designed to allow mating in only one correct orientation, preventing misconnection and potential damage to equipment.

Color-Coding Options: Available in multiple housing colors for easy circuit identification, wire management, and streamlined maintenance.

Product Advantages

Enhanced Operational Uptime: The exceptional durability and reliable connection significantly reduce the risk of machine downtime due to connection failures, boosting overall productivity.

Superior Environmental Sealing (Optional): Many models in this series can be equipped with integrated O-rings and cable glands, providing high levels of protection (IP67/IP68) against water, dust, and humidity, making them ideal for outdoor LED lighting, marine electronics, and washdown environments.

Simplified Installation and Maintenance: The tool-assisted assembly allows for quick wire termination, while the plug-and-play design makes field service and component replacement fast and effortless.

Long-Term Cost Efficiency: Built to withstand mechanical stress and environmental factors, these connectors offer a much longer service life than standard alternatives, reducing the total cost of ownership and frequency of replacements.

Broad Compatibility: Designed to interface with a wide range of standard industrial sockets and receptacles, providing flexibility in system design and integration across various applications, from automotive wiring harnesses to automation control panels.

Application Fields

Our Industrial Pin Terminal Connectors are versatile components critical to the functionality of numerous industries:

Industrial Automation & Machinery: For connecting sensors, actuators, controllers, and motors on production lines and robotic equipment.

Outdoor & Industrial LED Lighting: Providing reliable, waterproof connections for LED street lights, high-bay lighting, stadium lights, and architectural lighting systems.

Automotive Electronics: Used in vehicle wiring harnesses for interior lighting, control modules, and sensor connections.

Display Screen Systems: Ensuring stable signal and power transmission for large-scale indoor and outdoor LED displays and signage.

Renewable Energy: Interconnecting wiring in solar power systems and wind turbine control units.

Marine and Medical Equipment: Where resistance to harsh environments or the need for secure, fail-safe connections is paramount.

Frequently Asked Questions (FAQ)

Q1: What is the IP rating of these connectors?

A: Many of our Industrial Pin Terminal Connectors are rated IP67 or IP68 when fully mated, meaning they are completely protected against dust and can withstand temporary immersion (IP67) or prolonged immersion (IP68) in water. Please check the specific product datasheet for the exact rating of each model.

Q2: What wire gauges are compatible with these pin terminals?

A: This connector series is designed to accommodate a broad range of wire gauges, typically from fine-stranded signals wires up to heavier power cables (e.g., 16 AWG to 24 AWG). We offer different terminal sizes to ensure a secure and proper crimp for your specific wire.

Q3: Are these connectors vibration-resistant?

A: Absolutely. The secure locking mechanism and robust housing are specifically designed to maintain a stable connection in high-vibration environments, such as those found in automotive, machinery, and transportation applications.

Q4: Do you provide custom Connector solutions?

A: Yes. As a specialist manufacturer, we offer customization services for pin terminal connectors, including custom lengths, colors, labeling, and specific material requirements to meet unique application needs.
