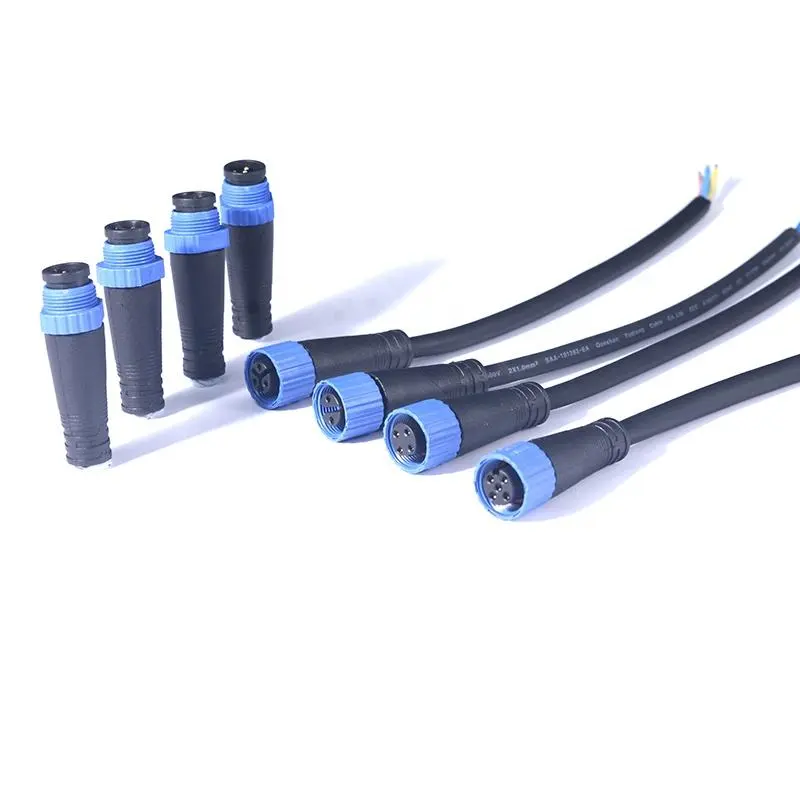

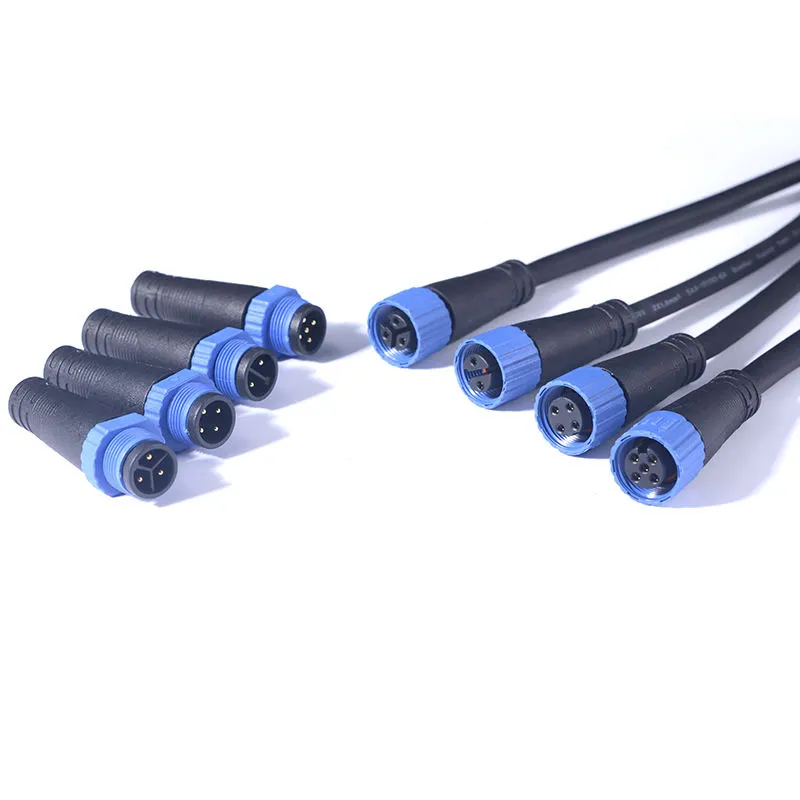

The JYK-M15 series is a premium-grade, fully-seaLED connector system engineered specifically for the demanding requirements of professional LED lighting and outdoor electronic applications. Manufactured by Shenzhen Jiayunkang Technology Co., Ltd., a specialist in robust connectivity solutions, this connector series simplifies and secures the electrical connections that power your illumination projects.

Available in 2 to 5-pin configurations, the JYK-M15 provides unparalleled flexibility for various wiring needs—from simple 2-wire power connections for standard fixtures to more complex setups involving separate power, dimming, and control signals for smart lighting systems. Its core design philosophy is to offer a plug-and-play solution that drastically reduces installation time while providing a permanent, fail-safe seal against harsh environmental conditions. The connector is built to endure, ensuring your LED installations remain bright, reliable, and maintenance-free for years.

Product Features

High IP68 Protection Rating: Certified to be completely dust-tight and capable of withstanding continuous submersion in water under specified conditions, guaranteeing performance in rain, snow, and humid environments.

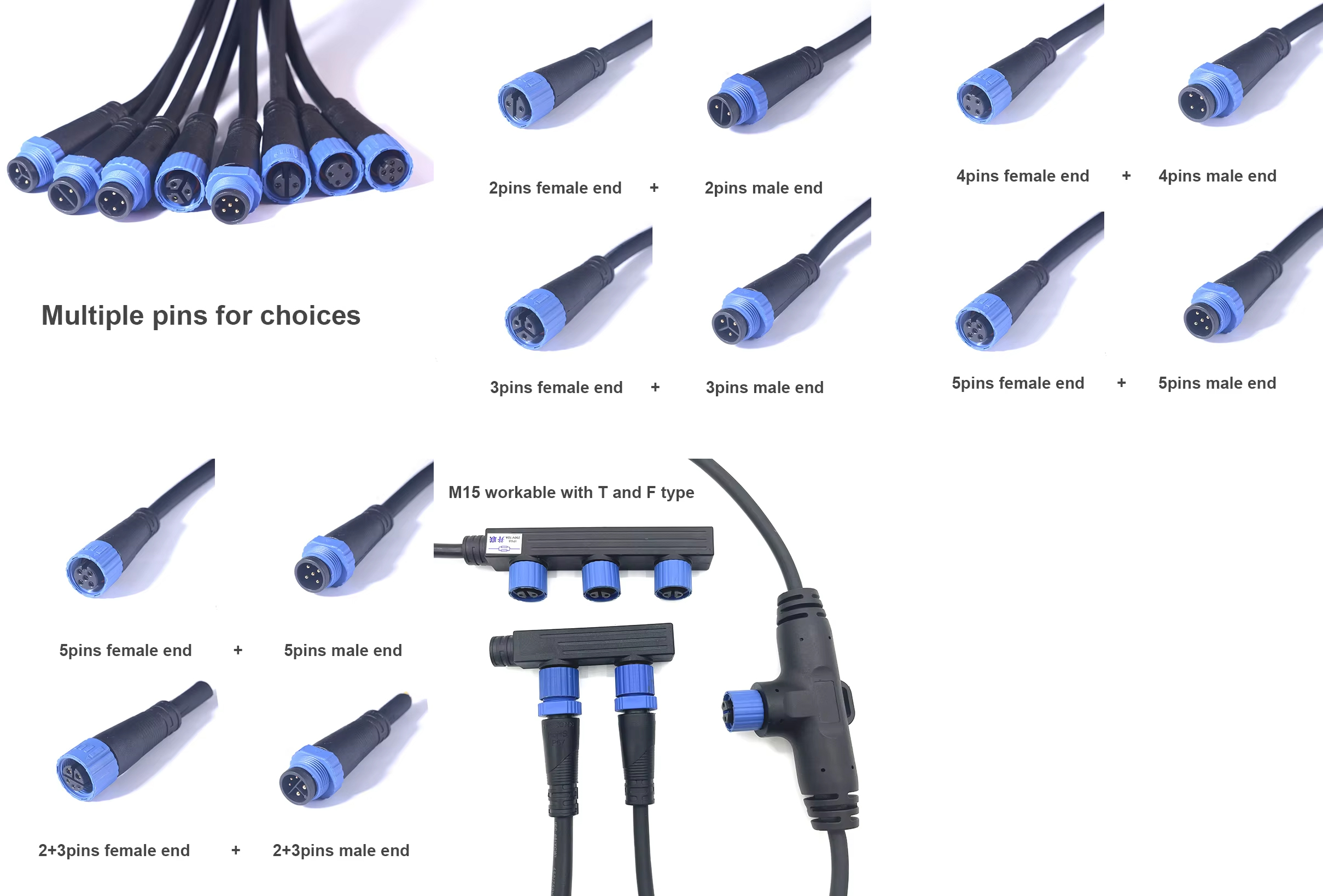

Multi-Pin Configurations: Versatile offering of 2-pin, 3-pin, 4-pin, and 5-pin options to accommodate power, ground, and control wires within a single, compact unit.

Robust Brass/Nickel-Plated Core: The central screw-on coupling ring, made from brass with a corrosion-resistant nickel plating, ensures a tight, secure, and long-lasting mechanical connection that won't loosen from vibration.

High-Quality PBT Housing: The connector body is manufactured from Premium PBT (Polybutylene Terephthalate) plastic, offering excellent resistance to UV radiation, high temperatures, and chemical corrosion.

Integrated Sealing Gaskets: Features high-grade silicone rubber O-rings and a dedicated cable gland, creating a multi-layered seal that effectively locks out moisture and dust.

Clear Polarity Marking: Intuitive and clear polarity indicators prevent incorrect mating during installation, protecting your LED drivers and fixtures from potential reverse-polarity damage.

Product Advantages

Maximized LED Lifespan and Reliability: By providing a perfectly dry and stable connection point, the JYK-M15 directly prevents common failure points like corrosion and short circuits, thereby extending the operational life of your entire LED lighting system.

Drastic Reduction in Installation Time and Cost: The simple screw-together mating mechanism requires no special tools, enabling quick and easy connections in the field. This plug-and-play design significantly lowers labor costs and minimizes project completion times.

Superior Mechanical Strength and Vibration Resistance: The threaded locking system and rugged construction ensure the connection remains intact and fully functional even in high-vibration settings, such as on bridges, tunnels, or industrial machinery.

Unmatched Versatility for Complex Systems: The availability of up to 5 pins allows lighting designers and engineers to integrate dimming (e.g., 0-10V, PWM), color tuning (RGB), or smart control signals alongside main power lines without needing multiple, separate connectors.

Long-Term Weathering Resistance: The combination of UV-resistant PBT housing and corrosion-proof metal components ensures the connector will not degrade, crack, or fail, even after years of exposure to direct sunlight and extreme weather conditions.

Application Fields

The JYK-M15 Waterproof Connector is the ideal choice for a wide array of outdoor and industrial applications where moisture and dust are a constant threat:

Outdoor LED Lighting Systems: Including LED street lights, floodlights, high-mast lighting, and garden lights.

Architectural and Facade Lighting: For connecting LED strips, linear lights, and wall washers on building exteriors.

LED Display Screens and Signage: Providing reliable power and data connections for outdoor advertising displays and digital billboards.

Industrial and Factory Lighting: Withstanding harsh environments in warehouses, manufacturing plants, and cold storage facilities.

Landscape and Park Illumination: Perfect for path lights, underwater lights, and other decorative outdoor fixtures.

Power Supply Connections for Outdoor Equipment: Such as CCTV cameras, sensors, and communication devices.

Frequently Asked Questions (FAQ)

Q1: What is the maximum voltage and current rating for the JYK-M15 connector?
A: The standard JYK-M15 series is typically rated for up to 250V and 5A per pin. It is crucial to consult the specific technical datasheet for the model you select to confirm the ratings for your application.

Q2: What is the difference between IP67 and IP68, and which does this product have?
A: IP67 rated devices are protected against immersion in water between 15 centimeters and 1 meter for 30 minutes. IP68 offers a higher protection level, suitable for continuous immersion in water under conditions specified by the manufacturer. The JYK-M15 series is rated at IP68, making it suitable for more demanding and permanent submerged applications.

Q3: What cable outer diameters are compatible with the integrated cable gland?
A: The cable gland is adjustable and designed to accommodate a range of standard cable outer diameters, typically from 4mm to 8mm. This ensures a tight seal on most cables used in LED lighting installations.

Q4: Are the connector halves sold pre-assembled?
A: They are typically supplied as separate components (plug and socket) for easy wiring. The assembly process is straightforward, involving wire termination, securing the cable gland, and screwing the two halves together.
