Product Description

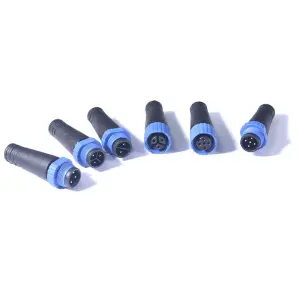

Shenzhen Jiayunkang Technology Co., Ltd. presents a robust and efficient connectivity solution designed for modern industrial automation: the M15 Male and Female Push Wire 5-Pin PVC Connector. This circular connector series is engineered to provide a fast, reliable, and secure interface for sensors, actuators, and other critical devices in automated systems. The M15 threaded coupling ensures a vibration-resistant connection, while the innovative push-wire (spring-cage) technology eliminates the need for specialized tools, dramatically reducing installation time and labor costs.

Crafted with a high-quality PVC housing, this connector offers excellent resistance to oils, chemicals, and mechanical impact, making it suitable for harsh factory floor environments. The 5-pin configuration allows for the transmission of both power and signal, supporting a wide range of industrial applications. As a dedicated manufacturer of waterproof and mechanical Equipment connectors, we have designed this series to meet the demanding requirements of reliability and efficiency, providing a seamless link in your control and data networks.

Product Features

Efficient Push-Wire Technology: Features spring-loaded cage clamps that allow for quick and secure wire termination without the need for crimping tools. Simply strip the wire and insert it for a perfect, maintenance-free connection.

M15 Threaded Coupling: The precision-metric thread ensures a fast, secure, and vibration-proof mating cycle between male and female counterparts, preventing accidental loosening in dynamic environments.

5-Pin Configuration: Provides versatile connectivity for complex devices requiring multiple signal lines or separate power and data circuits in a compact form factor.

Durable PVC Housing: The connector body is manufactured from industrial-grade PVC, offering high resistance to impact, abrasion, oils, and a wide range of chemicals commonly found in industrial settings.

Integrated Sealing: Equipped with high-performance O-rings and cable grommets that provide a reliable IP67 rating, protecting the connection from dust, moisture, and temporary immersion, ensuring operational integrity.

Polarized Design: The housing is keyed to ensure correct mating orientation every time, preventing pin damage and miswiring during installation.

Product Advantages

Drastic Reduction in Installation Time: The push-wire technology simplifies the wiring process, allowing for connections to be made in seconds. This leads to lower assembly costs and faster project commissioning.

Enhanced System Reliability: The combination of the M17 threaded lock and IP67 environmental sealing guarantees a stable and protected connection, minimizing machine downtime and maintenance interventions caused by connection failures.

Cost-Effective Solution: By eliminating the need for crimp terminals and specialized tooling, this connector system reduces the total cost of ownership, from initial inventory to ongoing labor.

Superior Versatility: The 5-pin design and robust construction make it an ideal, all-in-one solution for connecting a vast array of 4-20mA sensors, photoelectric sensors, small solenoids, and DC actuators across different automation platforms.

Long-Term Durability: The high-quality PVC material and corrosion-resistant pin contacts ensure a long service life, even in challenging conditions involving temperature fluctuations, humidity, and exposure to coolants.

Application Fields

This M15 Push Wire Connector is perfectly suited for a wide spectrum of industrial and automation applications:

Factory Automation & Robotics: Ideal for interconnecting sensors, limit switches, and small actuators on production lines, robotic arms, and conveyor systems.

Packaging Machinery: Provides reliable connections for sensors and control elements in high-speed packaging and filling machines.

Process Control Systems: Used to wire level sensors, flow meters, and pressure transmitters in various industrial processes.

Material Handling Equipment: Ensures secure power and signal transmission for sensors in automated guided vehicles (AGVs) and sorting systems.

Water Treatment and Irrigation Control: The IP67 rating makes it suitable for environments with moisture and washdown requirements.

Frequently Asked Questions (FAQ)

Q1: What is the maximum wire gauge/size compatible with the push-wire terminals?
A: The push-wire terminals are typically designed for solid or stranded conductors, supporting a range up to 0.75 mm² (approximately 18 AWG). It is crucial to use the correctly sized wire to ensure a secure and reliable connection.

Q2: Can this connector be used outdoors?
A: Yes. With its IP67 protection rating, the connector is fully protected against dust and the effects of temporary immersion in water, making it suitable for outdoor use in industrial settings, though prolonged direct UV exposure should be considered.

Q3: Is the locking mechanism between male and female connectors reliable under vibration?
A: Absolutely. The M15 metric threading provides a robust, mechanically locked connection that is highly resistant to loosening from vibration, a common issue in machinery and automotive applications.

Q4: Do I need any special tools to assemble the connector onto a cable?
A: No special crimping tools are required for the wire termination. The push-wire technology only requires a standard wire stripper. A torque wrench may be recommended for tightening the cable gland to ensure a proper seal, but it is not always mandatory.
