Product Description

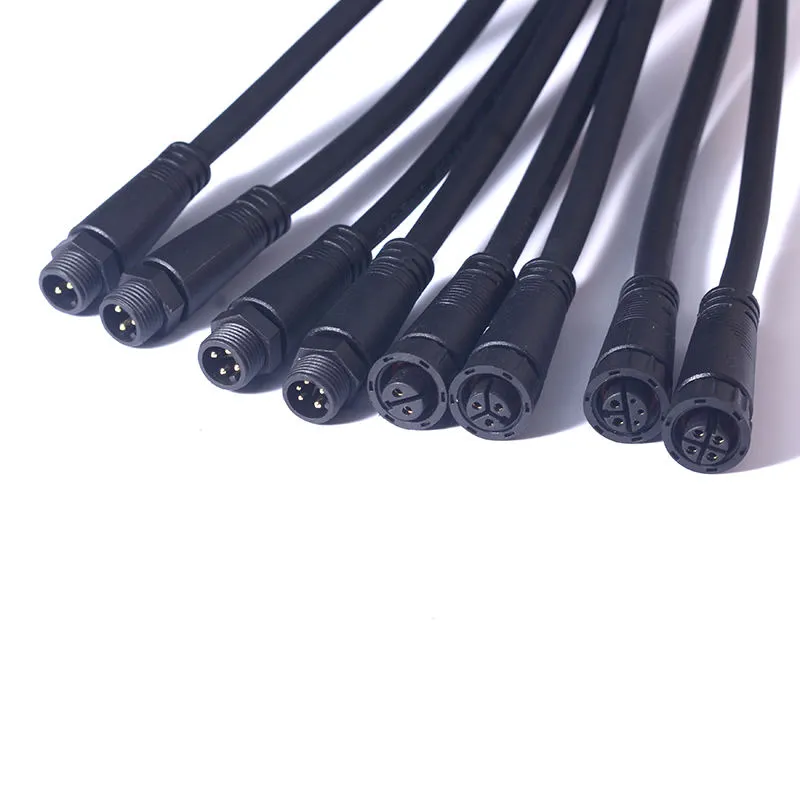

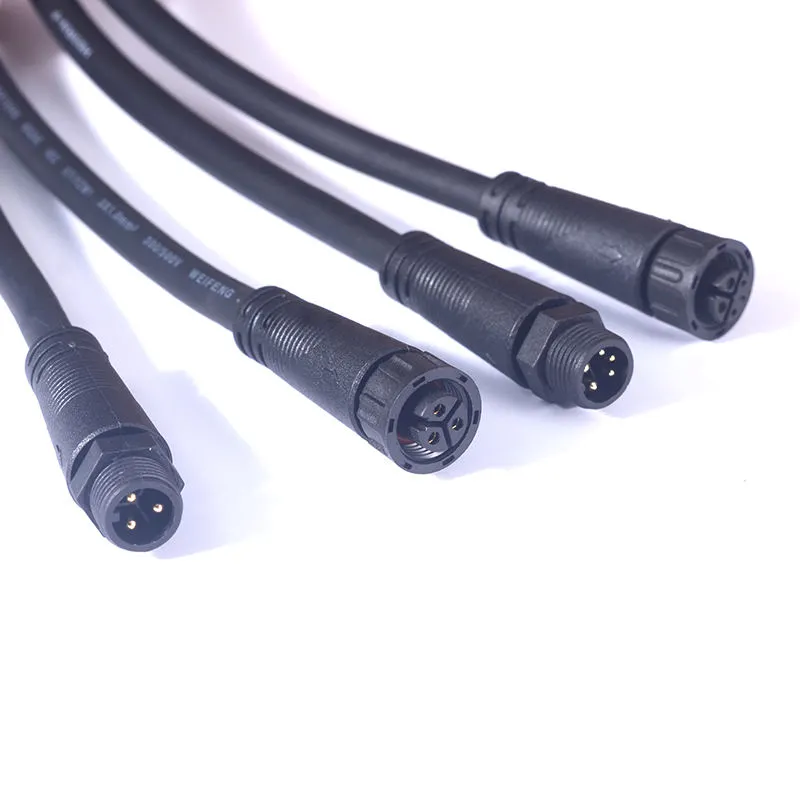

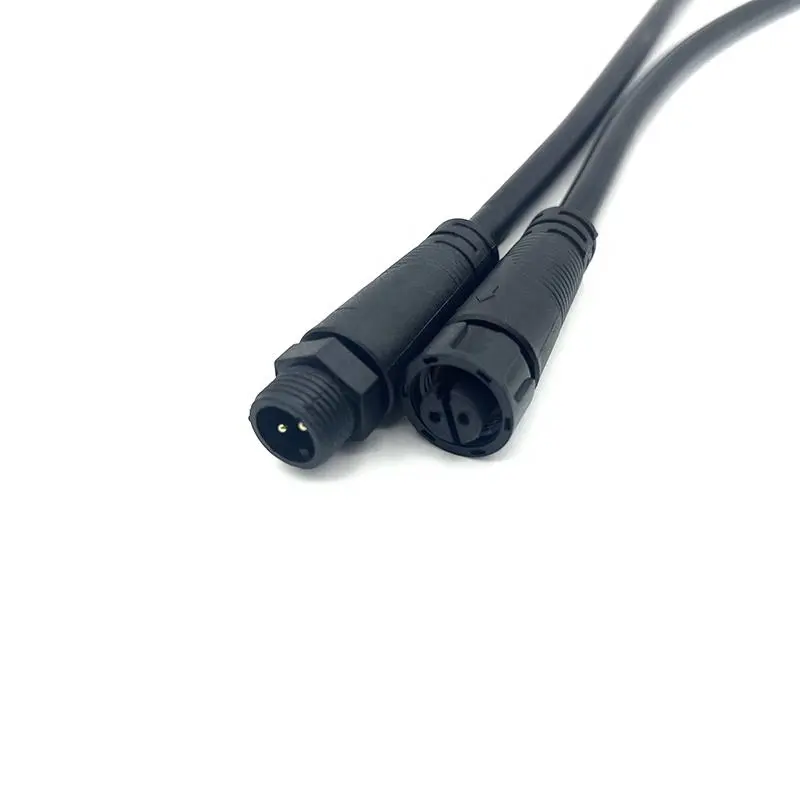

The M12 5-Pin Wire Mold Female Plug is a premium-grade, industry-standard connector engineered specifically for robust and reliable data transmission in demanding display and lighting applications. As a female connector with a wire mold strain relief, it is designed to seamlessly terminate cable ends, creating a secure, locked connection with male receptacles on devices. This 5-pin configuration is essential for carrying the complex signals required by modern LED displays, digital signage, and advanced lighting systems, supporting protocols like DMX512, RGB control, and other data-intensive communications. Crafted from high-quality materials and featuring an IP67-rated waterproof design, this connector ensures uninterrupted performance even in harsh outdoor or industrial environments where dust, moisture, and constant vibration are concerns. It is the ideal solution for system integrators and installers seeking to build durable, long-lasting, and high-fidelity visual communication networks.

Product Features

5-Pin A-Coded Design: The A-coding is standard for sensors and actuators, but its 5-pin layout is perfectly suited for carrying data and power simultaneously, making it a cornerstone for display and complex lighting control.

IP67-Rated Waterproof & Dustproof: Completely protected against dust ingress and the effects of temporary immersion in water up to 1 meter for 30 minutes. This makes it suitable for outdoor LED billboards, stadium screens, and industrial settings.

Robust Wire Mold Strain Relief: The integrated, molded strain relief absorbs tension, prevents cable bending at the critical connection point, and significantly enhances the longevity of the cable and connector by protecting the internal solder joints.

High-Quality PBT Housing: The connector body is manufactured from Polybutylene Terephthalate (PBT) plastic, which offers excellent resistance to impact, chemicals, heat, and UV radiation, ensuring stable performance over a wide temperature range.

Gold-Plated Brass Contacts: The precision-machined brass contacts with a thin layer of gold plating provide superior conductivity, low voltage drop, and high corrosion resistance, guaranteeing stable data transmission with minimal signal loss.

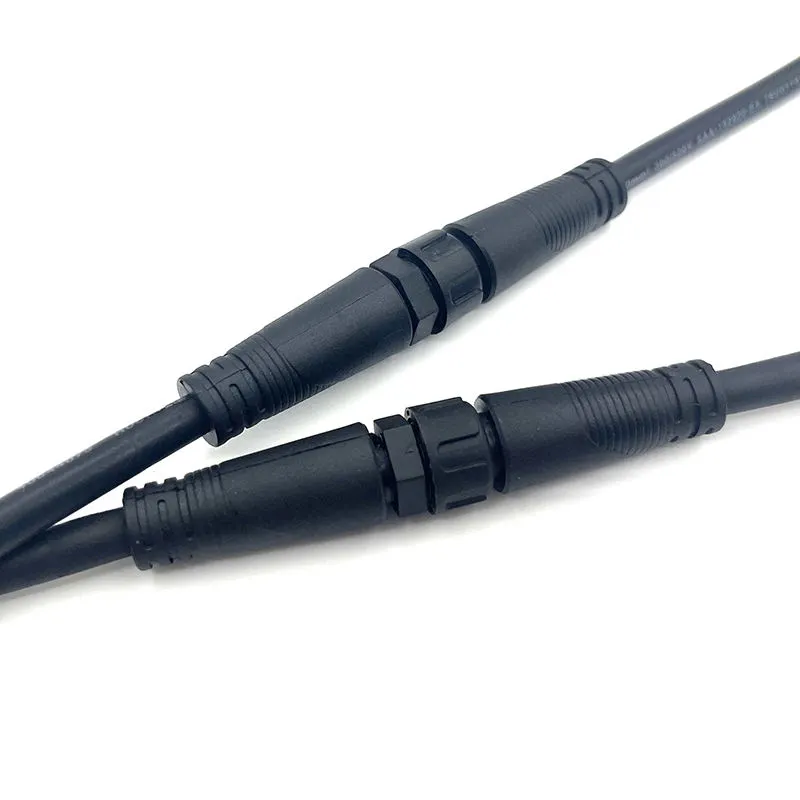

Secure Screw Locking Mechanism: The reliable M12x1 threaded coupling ensures a vibration-proof and tamper-resistant connection, preventing accidental disconnection in high-traffic or mobile applications.

Wide Operating Temperature Range: Consistently performs in temperatures from -25°C to +85°C, accommodating both frigid outdoor winters and the heat generated within active electronic enclosures.

Product Advantages

Beyond its standard features, this M12 Female Plug delivers distinct advantages that translate into tangible benefits for your projects and business.

Uncompromised Signal Integrity: The combination of gold-plated contacts and precision engineering minimizes signal attenuation and electromagnetic interference (EMI). For high-resolution displays, this means sharper images, more accurate color representation, and the elimination of glitches or data dropouts, ensuring your content is always displayed flawlessly.

Dramatically Reduced System Downtime: The IP67 rating and robust mechanical construction are your first line of defense against environmental failures. By choosing this connector, you invest in system reliability, drastically reducing maintenance costs, service calls, and the reputational damage caused by a failed display or sign.

Streamlined Installation and Maintenance: The clear, intuitive screw-locking mechanism allows for quick and tool-free mating, significantly speeding up the installation process. The wire mold design simplifies cable preparation and assembly, reducing labor time and potential human error during field termination.

Superior Long-Term ROI: While the initial cost may be slightly higher than inferior alternatives, the extended service life and reduced failure rate of this connector provide a significantly lower total cost of ownership. You save on replacement parts, labor, and operational disruptions over the lifespan of your installation.

Enhanced System Safety: The fully insulated housing and secure locking mechanism prevent accidental contact with live pins and protect against short circuits. This is critical for ensuring the overall safety of your electrical systems, protecting both equipment and personnel.

Product Application Fields

The versatility and reliability of the M12 5-pin Female Plug make it an indispensable component across a wide spectrum of industries.

Outdoor & Indoor LED Displays: Perfect for connecting modules and cabinets in large-scale video walls, digital billboards, stadium scoreboards, and retail signage.

Professional Stage & Event Lighting: Widely used in DMX512 lighting control networks to connect controllers, dimmers, and intelligent fixtures for concerts, theaters, and events.

Industrial Automation & Control Systems: Serves as a reliable data and power link for HMI (Human-Machine Interface) panels, industrial monitors, and sensor arrays on the factory floor.

Broadcast & Audiovisual Equipment: Used in broadcasting vans, studio equipment, and professional AV installations for robust signal transmission between devices.

Architectural & Landscape Lighting: Ideal for controlling complex RGB and dynamic white lighting systems on building facades, bridges, and public art installations.

Machinery & Plant Engineering: Connects control units, status indicator panels, and data acquisition systems on heavy machinery and production lines.

Marine and Vehicle Electronics: Its ruggedness makes it suitable for internal display and control systems in environments exposed to constant vibration and moisture.

Product Frequently Asked Questions (FQA)

1. What is the primary use of a 5-Pin M12 Connector versus a 4-pin?
While a 4-pin M12 is typically used for standard power or simple device connection (e.g., a 2-wire sensor), the 5-pin version provides an extra conductor. This is crucial for separate data and power lines or for carrying differential data signals, which is a common requirement in display and advanced lighting control protocols like DMX512.

2. How does the IP67 rating protect my installation?
The IP67 rating guarantees that the connector is "Ingress Protection" level 6 (completely dust-tight) and level 7 (protected against immersion in water between 15cm and 1 meter for 30 minutes). This means it can withstand rain, hose-directed water, and temporary flooding, making it safe for outdoor and wash-down environments.

3. Can I use this connector with any M12 male socket?
This female plug is designed to mate with any standard M12 male receptacle or socket that has a 5-pin A-coding. It is critical to ensure the coding (A, B, D) matches, as different codings have different pin spacings and are intended for different protocols (e.g., B-coding for Profibus, D-coding for Ethernet).

4. What is the recommended cable diameter for this connector?
Our M12 wire mold female plug is designed to accommodate a standard outer cable diameter range, typically between 4mm to 6.5mm. Please check the product's detailed datasheet for the exact specifications to ensure compatibility with your chosen cable.

5. Is special tooling required for assembly?
No, special tooling is not required. The connector can be assembled using standard hand tools for cable stripping and a soldering iron for connecting the wires to the pins. The screw-locking mechanism requires no tools for mating.
