Product Description

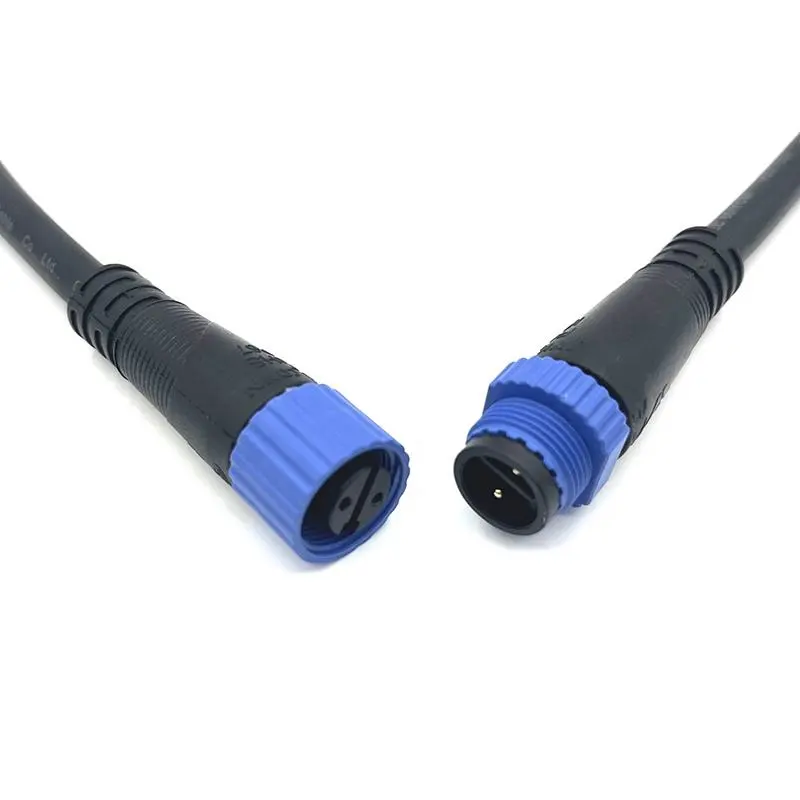

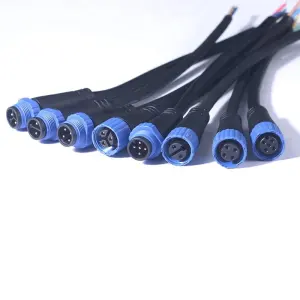

Shenzhen Jiayunkang Technology Co., Ltd. specializes in high-performance connectivity solutions built for demanding environments. Our M15 3-PIN Waterproof Screw Connector is a premium-grade component engineered specifically for the lighting industry. This connector features a robust threaded coupling mechanism (M15 x 1.0 metric thread) that ensures a secure, vibration-proof, and completely sealed connection. Designed with three pins, it is perfectly suited for standard power and grounding needs in various lighting applications, from industrial fixtures to outdoor installations.

Crafted with high-quality materials, the connector housing offers exceptional resistance to impact, UV radiation, and a wide range of chemicals. Integrated sealing rings provide a reliable barrier against moisture and particulate ingress. This product exemplifies our commitment to manufacturing connectors that guarantee longevity and operational stability, simplifying the installation and maintenance of lighting systems worldwide.

Product Features

Secure Screw-Locking Mechanism: The M15 threaded interface ensures a vibration-resistant, mechanically stable connection that will not loosen over time.

Superior IP68 Protection: Rated IP68, this connector is dust-tight and can withstand continuous immersion in water under specified conditions, making it ideal for outdoor and harsh environments.

Three-Pin Configuration: Provides a dedicated layout for Live, Neutral, and Earth connections, adhering to international safety standards for lighting equipment.

High-Grade Material Construction: The housing is made from PA66 (Nylon 66) material, offering excellent mechanical strength, temperature resistance, and chemical stability.

Temperature Resilient: Operates reliably within a wide temperature range (e.g., -40°C to +85°C), ensuring performance in both freezing and high-ambient conditions.

Easy Installation: Designed for tool-assisted assembly, allowing for quick and secure wire termination, which reduces labor time and costs.

Product Advantages

Maximized Lighting System Uptime: By eliminating connection failures caused by environmental factors, this connector directly contributes to reduced maintenance and higher reliability of lighting installations.

Enhanced Safety Compliance: The secure earth pin and robust insulation minimize the risk of short circuits and electric shock, ensuring compliance with stringent safety regulations.

Long-Term Cost Savings: The durable construction and corrosion-resistant contacts (such as gold-plated or tinned brass) provide an extended service life, lowering the total cost of ownership by eliminating frequent replacements.

Optimized for LED Technology: This connector is ideal for modern LED lighting, including high-wattage fixtures, where a stable and corrosion-free connection is critical to performance and longevity.

Streamlined Supply Chain: As a manufacturer, we ensure consistent quality and reliable supply, allowing lighting OEMs and installers to source a critical component without delays or quality concerns.

Application Fields

The M15 3-PIN Waterproof Screw Connector is a versatile solution for a wide array of applications requiring a secure and sealed power connection:

Industrial & Commercial LED Lighting: High-bay lights, warehouse lighting, and factory work lamp connections.

Outdoor & Architectural Lighting: Street lights, floodlights, park lighting, and building facade illumination.

Horticultural Lighting: Greenhouses and indoor farming facilities where humidity and chemical exposure are common.

Machinery & Equipment: Permanent power connections for industrial machinery, control cabinets, and conveyor systems.

Infrastructure Projects: Lighting for tunnels, bridges, bus stops, and other public infrastructure exposed to the elements.

Frequently Asked Questions (FAQ)

Q1: What is the difference between IP67 and IP68 ratings?
A: An IP67 rating guarantees protection against temporary immersion in water (up to 1 meter for 30 minutes). Our M15 connector's IP68 rating offers a higher standard, protecting against continuous immersion in water under conditions specified by the manufacturer, making it suitable for more permanently wet environments.

Q2: What is the maximum current and voltage rating for this connector?
A: Typical ratings for this series are up to 250V and 10A, making it suitable for a broad range of lighting applications. Please consult the specific product datasheet for detailed electrical parameters.

Q3: Is this connector compatible with different cable diameters?
A: Yes. We offer variants with different cable gland sizes to accommodate a range of outer cable diameters, ensuring a tight seal for various installation requirements.

Q4: Can I use this for non-lighting applications?
A: Absolutely. While optimized for lighting, its robust and waterproof design makes it an excellent choice for any low-power device or sensor requiring a reliable 3-pin connection in a challenging environment, such as in automation or small motor connections.
