Product Description

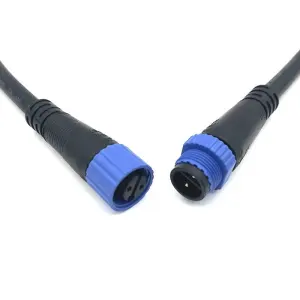

The M15 LED Insulated 2-PIN 28-12AWG connector from Shenzhen Jiayunkang Technology is a high-performance, threaded circular connector engineered specifically for robust and reliable power delivery in LED lighting systems and other demanding electrical applications. This connector features a compact M15x1.0 thread size, making it an ideal solution for space-constrained installations where a secure, waterproof seal is non-negotiable.

Pre-wired with two pins and supporting a broad wire range from 28 to 12 AWG, this connector is versatile enough to handle both signal and power connections for a wide array of devices. The integrated design includes a rubber insulator and a precision-machined brass core, plated for superior conductivity and corrosion resistance. Engineered to meet the rigorous demands of industrial, outdoor, and automotive environments, it ensures your connections remain intact and fully operational despite exposure to vibration, moisture, dust, and temperature fluctuations.

Product Features

M15 Threaded Coupling: Provides a secure, vibration-resistant connection with a simple screw-on mechanism, ensuring a stable link even in high-movement environments.

Broad Wire Compatibility: Accommodates a wide spectrum of wire gauges from 28 AWG (fine signal wires) to 12 AWG (higher power cables), offering exceptional application flexibility.

Integrated Rubber Insulator: The one-piece insulator provides excellent strain relief and enhances the overall waterproof integrity of the connection point.

Corrosion-Resistant Brass Core: The central brass contact, featuring high-quality plating, ensures minimal voltage drop, high current capacity, and long-term reliability by resisting oxidation.

High-Temperature Resistance: The housing and insulation materials are engineered to withstand elevated temperatures commonly encountered in LED drivers and engine compartments.

Polarized Design: The 2-pin configuration is designed to prevent incorrect mating, safeguarding your equipment from reverse polarity damage.

Product Advantages

Superior Environmental Protection: Achieves an IP67 or higher rating when mated, offering complete protection against dust ingress and the ability to withstand temporary immersion in water. This makes it perfect for outdoor LED fixtures, signage, and horticultural lighting that face rain, humidity, or washdowns.

Streamlined Installation and Maintenance: The pre-wired and insulated design significantly reduces assembly time. Its plug-and-play nature allows for quick field servicing and component replacements, minimizing system downtime.

Enhanced Electrical Safety and Performance: The superior insulation and sealed construction prevent short circuits, current leakage, and corrosion, ensuring consistent power delivery to your LED arrays and extending their operational lifespan.

Exceptional Mechanical Durability: The metal shell and robust construction protect the internal contacts from physical impact, crushing, and the stresses of constant vibration in automotive or machinery applications.

Optimized for LED Systems: Specifically designed to handle the power requirements of LED modules, strips, and fixtures, providing a dependable and safe connection solution that lighting designers and installers can trust.

Application Fields

This versatile M15 connector is the go-to solution for power connectivity in numerous industries:

Outdoor & Industrial LED Lighting: Ideal for connecting LED street lights, high-bay lights, floodlights, stadium lighting, and architectural facade lighting.

Automotive and Transportation Lighting: Used in truck/bus lighting, off-road vehicle light bars, work lamps, and interior LED lighting systems.

LED Signage and Display Systems: Provides reliable, waterproof power links for indoor and outdoor digital displays, channel letters, and illuminated signs.

Industrial Machinery & Control Cabinets: Offers a compact and sealed connection for sensors, actuators, and low-power devices within automated systems.

General Electronics and Equipment: Serves as a robust power interface for various 12V/24V DC systems, power supplies, and consumer electronics requiring a durable connector.

Frequently Asked Questions (FAQ)

Q1: What is the IP rating of this M15 connector?
A: When correctly mated, this M15 LED connector typically achieves an IP67 rating, meaning it is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes.

Q2: Is this connector male or female?
A: This specific product is typically offered as a pre-wired cable mount connector (often the female socket). The corresponding panel-mount plug (male) is usually available as a separate part to complete the mated pair. Please check the product listing or contact us for the specific configuration.

Q3: Can I use this for AC power connections?
A: While primarily designed for DC power applications common in LED systems (e.g., 12V/24V/48V DC), it can handle low-voltage AC within its specified voltage and current ratings. Always consult the product's technical datasheet for the exact electrical specifications.

Q4: What is the maximum current and voltage rating?
A: The exact rating depends on the wire gauge used. With its support for up to 12 AWG wire, it can handle significant current, often up to 10-15A, and voltages commonly up to 48V DC or higher. Refer to the official product parameters for precise values.
