Product Description

The M16 Aviation Plug is a professional-grade electrical connector designed for critical applications requiring reliable power transmission in demanding environments. This 2-core hard wire connector features a robust metal housing and precision-engineered multi-core wiring terminals that ensure secure connections in industrial, automotive, and aerospace applications. With its IP68-rated waterproof construction and military-grade durability, this aviation plug maintains exceptional performance under extreme conditions including vibration, temperature fluctuations, and exposure to moisture, oils, and chemicals. The connector's bayonet coupling mechanism enables quick and secure mating, making it ideal for applications where reliability and rapid connection/disconnection are essential.

Product parameters

Product Model: JYK-M16

Number of cores :2/3 pin

Shell material :PA66

Rated voltage :400V

Rated current :17.5A

Waterproof rating :IP68

Operating temperature :-40℃±105℃

Wire matching :0.5mm²-1.5mm²

Outer line diameter :3.5mm-7.0mm, 7.0mm-10mm

Product Features
Military-Grade Construction
Features a robust zinc alloy housing with corrosion-resistant coating, providing exceptional mechanical strength and environmental protection. The metal construction ensures durability in the most demanding applications.

Multi-Core Wiring Terminal Design
Innovative terminal block design accommodates both solid and stranded wires from 0.5mm² to 2.5mm², providing flexible wiring options and secure connections without additional crimping.

Bayonet Coupling Mechanism
The quick-lock bayonet system ensures rapid and secure mating with positive locking indication, preventing accidental disconnection even under severe vibration conditions.

IP68 Environmental Protection
Complete waterproof performance exceeds standard requirements, providing reliable operation when submerged in water up to 1.5 meters depth for extended periods.

High-Temperature Resilience
Special high-temperature resistant materials and sealing elements maintain performance in extreme temperature environments from -55°C to +125°C.

EMI/RFI Shielding
Integrated electromagnetic and radio frequency interference protection ensures clean signal transmission in electrically noisy environments.

Visual Connection Status
Color-coded housing and visible contact alignment features ensure proper mating and quick visual verification of connection status.

Product Advantages
Exceptional Reliability
Military-grade construction and precision engineering ensure uninterrupted operation in critical applications, with a failure rate of less than 0.01% under specified conditions.

Installation Flexibility
The multi-core terminal design accepts various wire types and sizes without requiring special tools, reducing installation time and inventory requirements.

Maintenance-Free Operation
Self-cleaning contacts and corrosion-resistant materials provide long service life with minimal maintenance requirements, even in harsh environments.

Safety Assurance
The positive locking mechanism and insulated contact design prevent accidental disconnection and electrical shock, meeting international safety standards.

Cost Efficiency
Reduced installation time, minimal maintenance requirements, and long service life provide significant total cost savings over the product lifecycle.

Global Compliance
Certified according to international standards including IEC 61076-2, MIL-DTL-5015, and other relevant aviation and industrial specifications.

Application Fields
Aerospace and Aviation

• Aircraft instrumentation systems

• Avionics equipment connections

• Ground support equipment

• Satellite communication systems

Military and Defense

• Field communication equipment

• Weapon systems connections

• Military vehicle electronics

• Naval shipboard systems

Industrial Automation

• Robot arm connections

• CNC machinery power supplies

• Industrial sensor networks

• Motor control systems

Transportation Systems

• Railway signaling equipment

• Automotive test systems

• Marine navigation equipment

• Heavy vehicle electronics

Energy Sector

• Wind turbine systems

• Solar power installations

• Power distribution equipment

• Oil and gas instrumentation

Medical Equipment

• Mobile medical devices

• Diagnostic equipment

• Hospital facility systems

• Emergency medical systems

Frequently Asked Questions (FAQ)

Q1: What is the difference between IP67 and IP68 rating?
A: IP68 provides superior protection, allowing continuous submersion in water beyond 1 meter depth, while IP67 is limited to temporary immersion at shallower depths.

Q2: Can this connector handle high-vibration environments?
A: Yes, the bayonet locking mechanism and military-grade construction are specifically designed to maintain secure connections in high-vibration applications exceeding 20G.

Q3: What types of wire are compatible?
A: The terminal accepts both solid and stranded wires from 0.5mm² to 2.5mm², including AWG 20-14 equivalent sizes.

Q4: Is special tooling required for installation?
A: No special tools are needed. The screw terminal design allows installation with standard screwdrivers, and the bayonet coupling requires no tools for mating.

Q5: What is the expected service life?
A: The connector is rated for a minimum of 500 mating cycles while maintaining all electrical and environmental specifications.

Q6: Are custom contact configurations available?
A: Yes, we offer custom configurations including additional contacts, mixed signal/power contacts, and special pin arrangements.

Q7: Does the connector require maintenance?
A: The connector is designed for maintenance-free operation. Periodic visual inspection and cleaning in extreme environments are recommended.

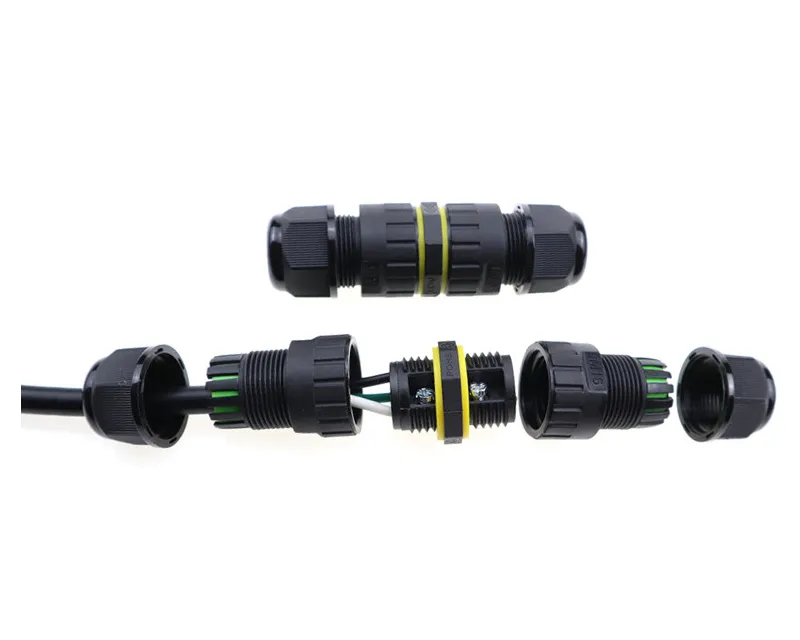

Display of waterproof plug
