Product Description

The Straight-Through Joint Outdoor Cable Connector is a professional-grade aviation plug solution designed for reliable power and signal transmission in demanding outdoor environments. This connector features a robust military-style design with IP68-rated waterproof protection, ensuring uninterrupted performance in extreme weather conditions. The straight-through joint design allows for quick and secure cable connections without compromising cable integrity, making it ideal for temporary or permanent installations where reliability is critical. Engineered with precision brass contacts and high-temperature resistant housing, this connector maintains stable electrical performance while withstanding exposure to UV radiation, moisture, and temperature fluctuations.

Product parameters

Product Model :JYK-M25

Number of cores :2/3/4/5 pins

Shell material :PA66

Rated voltage :400V

Rated current :40A

Waterproof rating :IP68

Operating temperature :-40℃±105 ℃

Wire matching :0.5mm²-6.0mm²(2P/3P/4P)0.5mm²-2.5mm²(5P)

Outer line diameter :5mm-14mm

Product Features

• IP68 Waterproof Rating: Provides complete protection against dust and continuous water immersion

• Military-Grade Construction: Meets stringent durability standards for harsh environment applications

• Straight-Through Design: Enables easy cable passage and maintains cable flexibility

• 360° Shielding: Comprehensive EMI/RFI protection for signal integrity

• Quick-Lock Mechanism: Bayonet-style coupling for fast and secure connections

• Temperature Resilience: Operates from -40°C to +125°C

• Corrosion-Resistant: Nickel-plated brass components withstand harsh conditions

• Universal Compatibility: Works with various cable types and sizes

Product Advantages
The straight-through joint design offers significant installation advantages by eliminating complex wiring procedures. The IP68 protection ensures reliable operation in flooded conditions, reducing maintenance needs and system downtime. The military-grade construction provides 5x longer service life compared to Standard Connectors, while the quick-lock mechanism enables rapid deployment in field applications. The EMI shielding maintains signal purity in electrically noisy environments, and the wide temperature range allows deployment in arctic to desert conditions.

Application Fields

• Outdoor lighting and power distribution systems

• Temporary event power connections

• Military and defense field equipment

• Marine and offshore applications

• Construction site power distribution

• Renewable energy installations

• Emergency power systems

• Telecommunications infrastructure

Frequently Asked Questions (FAQ)

Q1: What is the maximum cable diameter supported?
A: The connector accommodates cables from 6mm to 12mm diameter, with adapters available for smaller diameters.

Q2: Can this connector be used underwater?
A: Yes, with IP68 rating, it can withstand continuous immersion up to 2 meters depth.

Q3: What is the expected service life?
A: The connector is rated for ≥500 mating cycles while maintaining waterproof integrity.

Q4: Does it require special tools for installation?
A: No special tools are needed - the connector features a tool-free assembly design.

Q5: Is the connector UV resistant?
A: Yes, the housing material includes UV stabilizers for long-term outdoor use.

Q6: What safety certifications does it hold?
A: The connector meets CE, RoHS, and relevant military standards for electrical safety.

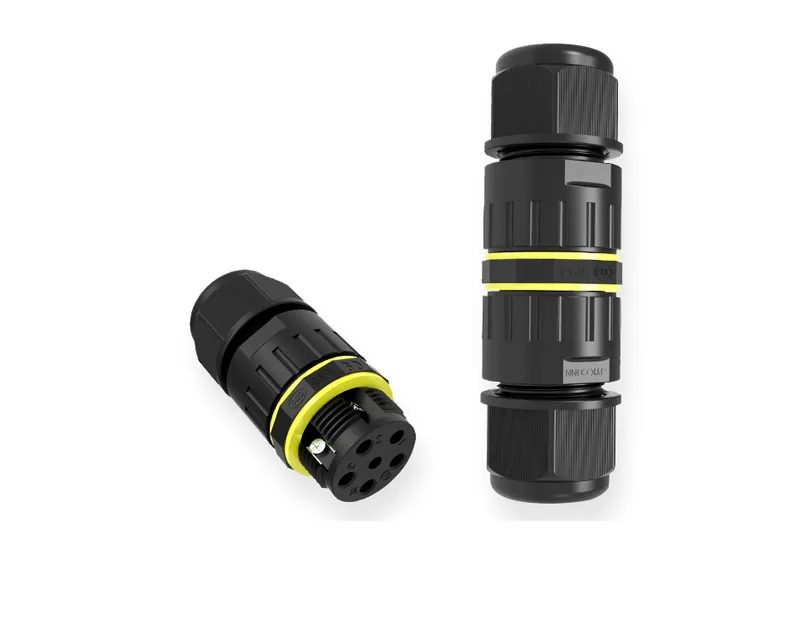

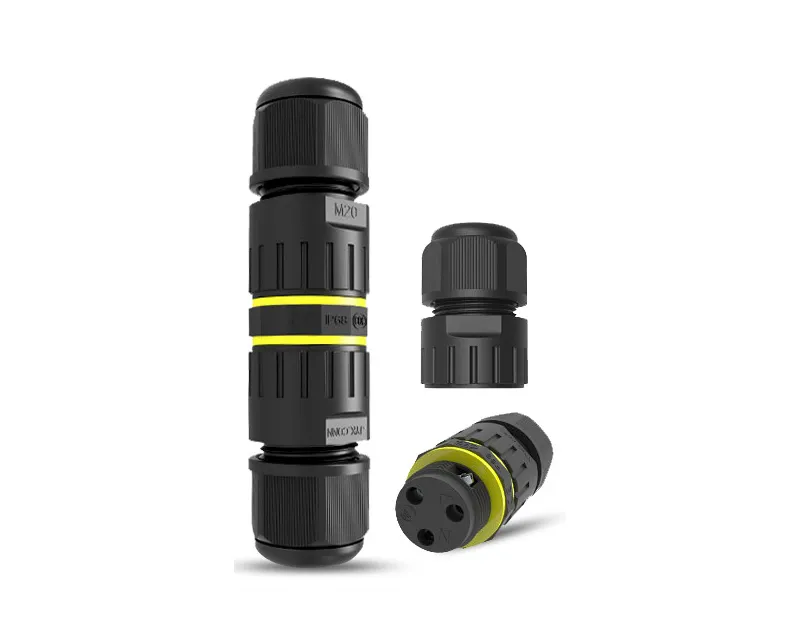

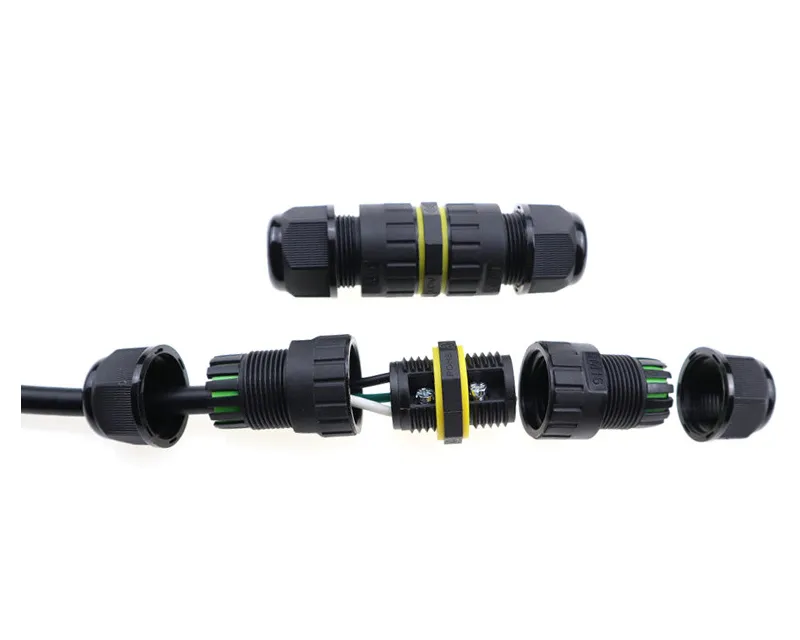

Display of waterproof plug
