Product Description
The M12 Metal Nut Waterproof Connector is a premium-grade connection solution designed for demanding industrial applications where reliability and durability are paramount. Featuring a robust metal coupling nut and IP67-rated waterproof protection, this connector series provides exceptional performance in harsh environments. The metal nut ensures secure mating and superior resistance to vibration, making it ideal for factory automation, machinery, and outdoor applications. Precision-engineered with gold-plated contacts for optimal conductivity and corrosion resistance, the M12 connector maintains stable electrical performance even in challenging conditions involving moisture, dust, and temperature variations.

Applications:

M12 metric Threaded Connectors, the most commonly used connectors in the field of factory automation, with a design standard of IEC61076-2-101, are mainly developed and designed for factory automation sensors and actuators.

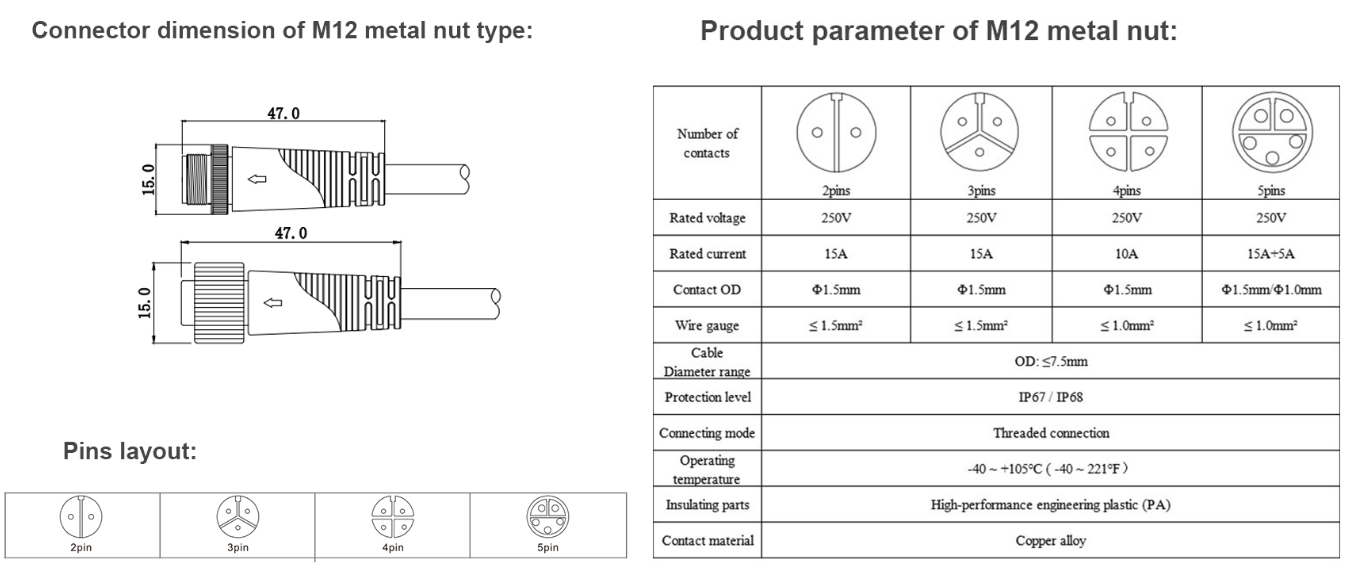

Parameters:

Product Features

• Metal Coupling Nut: Zinc alloy construction provides superior durability and vibration resistance

• IP67 Protection: Complete waterproof and dustproof performance

• Gold-Plated Contacts: Excellent conductivity and corrosion resistance

• Temperature Range: -40°C to +85°C operation capability

• 360° Shielding: Full electromagnetic interference protection

• Quick-Connect System: Simple push-pull locking mechanism

• Multiple Pin Options: Available in 3, 4, 5, and 8-pin configurations

• Cable Gland Protection: Integrated strain relief for cable security

Product Advantages
The M12 Metal Nut Connector offers exceptional value for industrial applications. The metal coupling nut provides significantly enhanced durability compared to plastic alternatives, ensuring reliable performance in high-vibration environments. The IP67 rating guarantees protection against water, oils, and chemicals, reducing maintenance needs and downtime. Gold-plated contacts ensure stable signal transmission and prevent corrosion, crucial for sensitive industrial equipment. The 360° shielding protects against EMI/RFI interference, making it suitable for applications near motors and frequency drives. The wide temperature range allows deployment in virtually any industrial setting, from cold storage facilities to high-temperature manufacturing environments.

Application Fields

• Industrial automation and robotics

• Factory machinery and equipment

• Sensor and actuator connections

• Motor and drive systems

• Transportation and vehicle systems

• Outdoor monitoring equipment

• Food and beverage processing machinery

• Packaging and material handling systems

Frequently Asked Questions (FAQ)

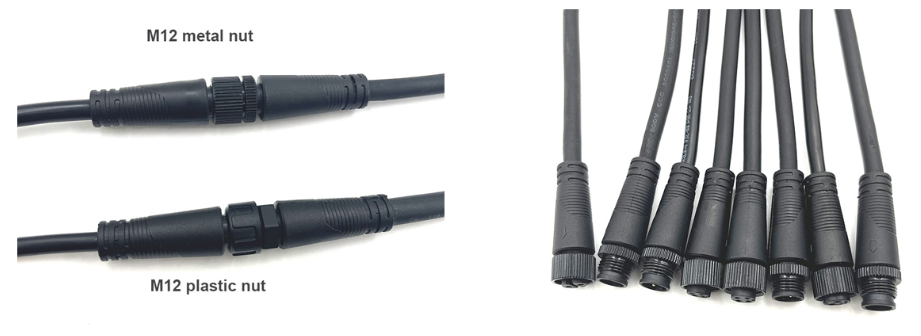

Q1: What makes the metal nut superior to plastic versions?
A: The metal nut provides enhanced durability, better vibration resistance, and longer service life in harsh industrial environments.

Q2: Is the connector truly waterproof?
A: Yes, with an IP67 rating, it provides complete protection against dust and can withstand temporary immersion in water up to 1 meter for 30 minutes.

Q3: Can I use this connector in high-vibration applications?
A: Absolutely. The metal coupling nut and secure locking mechanism are specifically designed to maintain reliable connections in high-vibration environments.

Q4: What cable types are compatible?
A: The connector works with various cable types including PUR, PVC, and rubber cables with diameters from 4mm to 8mm.

Q5: How many mating cycles does the connector support?
A: The connector is rated for a minimum of 100 mating cycles while maintaining its waterproof integrity.

Q6: Is the connector shielded against EMI?
A: Yes, it features 360° shielding protection against electromagnetic interference.

Details:
