Shenzhen Jiayunkang Technology Co., Ltd., a leading high-tech enterprise, presents its flagship IP67 PVC Soft Waterproof Connector. Engineered for excellence, this connector series is the definitive solution for applications where exposure to water, dust, and harsh conditions is a constant challenge. We specialize in the design, R&D, and manufacturing of high-performance connection systems, and this product embodies our commitment to quality, durability, and innovation. It is the ideal choice for outdoor lighting, industrial automation, and various electronic systems requiring unwavering reliability.

Product Description

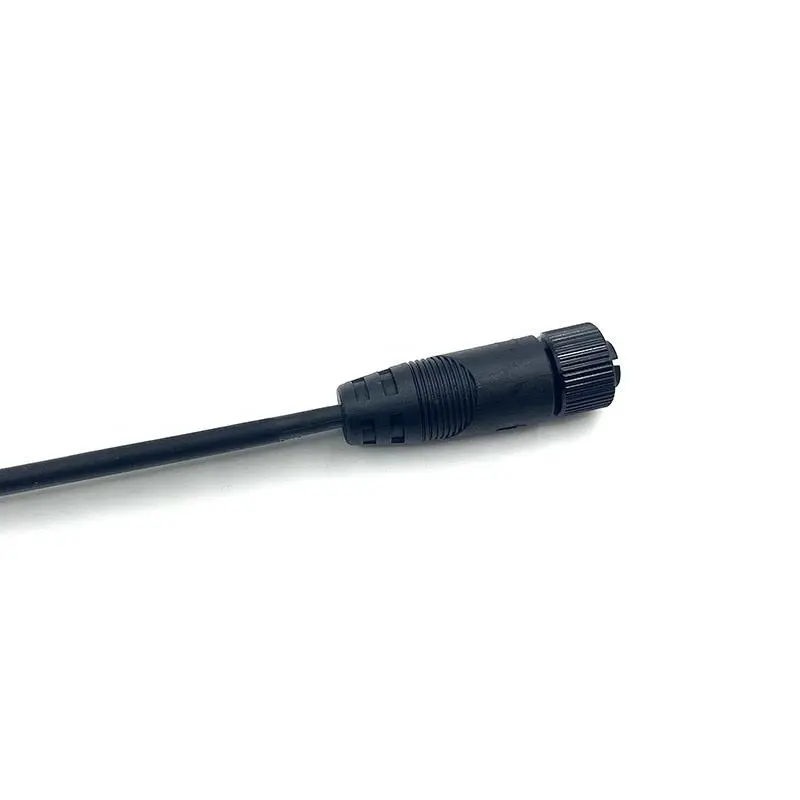

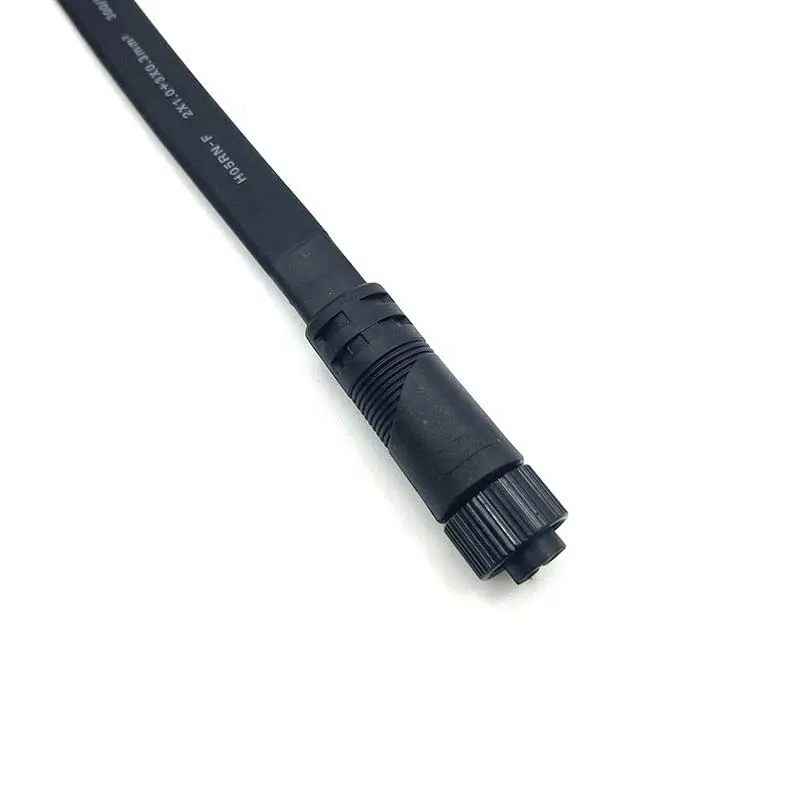

Our IP67 PVC Soft Waterproof Connector is a robust, multi-pin electrical connector system designed for easy and secure connections in tough environments. The connector features a high-quality PVC jacket that remains flexible across a wide temperature range, ensuring excellent resistance to abrasion, oils, and chemicals. The core of its performance lies in the precision-machined brass contacts, often gold-plated for superior conductivity and corrosion resistance, housed within an engineering thermoplastic insulator.

The hallmark of this series is its integrated sealing system. A multi-layered sealing design, including silicone O-rings and potting gel inside the cable gland, creates a hermetic seal when mated. This construction is rigorously tested to meet the IP67 rating, guaranteeing complete protection against dust ingress and the effects of temporary immersion in water up to 1 meter deep. Available in 2 to 8 pins and various wire gauges, it offers unparalleled versatility for power and signal transmission.

Product Features

IP67 Rated Protection: Certified to be completely dust-tight and waterproof against temporary immersion, ensuring operational integrity in rain, humidity, and dusty conditions.

Flexible & Durable PVC Jacket: The soft PVC outer material resists cracking, aging, and mechanical stress, maintaining flexibility in both high and low-temperature environments.

Superior Contact Technology: Precision brass terminals with gold plating ensure low voltage drop, high current capacity, and stable signal transmission with excellent oxidation resistance.

Easy Click-Lock Mechanism: A user-friendly, quick-connect bayonet-style locking system provides a secure, vibration-proof connection that is simple to mate and unmate without tools.

Multi-Layered Sealing Design: Combines radial O-rings on the plug-socket interface and axial compression seals within the cable gland for a failsafe barrier against moisture and contaminants.

Wide Configuration Options: Available in multiple pin counts (2, 3, 4, 5, 6, 8) and standard AWG sizes to fit a broad spectrum of electrical requirements.

Product Advantages

Enhanced System Longevity: By effectively shielding sensitive electronics from environmental damage, our connectors significantly extend the service life of your equipment, reducing maintenance costs and downtime.

Simplified Installation & Maintenance: The soft cable and intuitive click-lock mechanism drastically reduce installation time and effort. This plug-and-play design also allows for quick field replacements and system modifications.

Uncompromised Reliability in Harsh Conditions: Whether it's for an outdoor LED installation facing torrential rain or an industrial machine exposed to coolants and dust, this connector delivers consistent performance where Standard Connectors would fail.

Cost-Effective Solution: Offering a premium level of protection without a premium price tag, our connector provides exceptional value. Its durability prevents costly connector failures and associated system damage.

Global Compliance & Safety: Manufactured to meet international electrical and safety standards, ensuring safe operation and compatibility for global markets.

Product Application Fields

The versatility of the IP67 PVC Soft Waterproof Connector makes it indispensable across numerous industries.

Outdoor LED Applications: Perfect for connecting LED street lights, landscape lighting, architectural facade lighting, and large outdoor digital displays.

Industrial Automation & Machinery: Ideal for sensors, actuators, motors, and control panels on factory floors, CNC machines, and robotic systems exposed to coolants and particulates.

Security & Surveillance Systems: Provides reliable power and signal connections for outdoor CCTV cameras, IP cameras, and security device networks in all weather conditions.

New Energy & Automotive Electronics: Used in charging connections for low-speed electric vehicles, connections within battery management systems, and various automotive peripheral devices.

Marine & Outdoor Electronics: Suitable for low-voltage applications on boats, yachts, and other marine equipment, as well as for portable power stations and outdoor recreational gear.

Medical Equipment: Ensures safe and reliable connections for mobile medical carts, diagnostic equipment, and other devices that require frequent cleaning or are used in challenging environments.

Product FAQ

Q1: What does the IP67 rating mean for my application?
A1: The IP (Ingress Protection) code defines levels of sealing effectiveness. IP67 means "6" (complete protection from dust) and "7" (protection from immersion in water between 15cm and 1 meter for up to 30 minutes). This makes the connector suitable for outdoor and wet-location use.

Q2: Can I customize the cable length and pin configuration?
A2: Yes. As a specialized manufacturer, Jiayunkang Technology offers extensive customization options, including specific cable lengths, pin-out configurations, and custom wire gauges to meet your project's exact specifications.

Q3: What is the temperature range for this connector?
A3: The PVC soft jacket typically performs well in a range from -25°C to +80°C, maintaining its flexibility and sealing properties. For extreme temperatures, we can advise on alternative jacket materials.

Q4: How do I ensure a proper seal during installation?
A4: For a proper IP67 seal, ensure the rubber gasket inside the cable gland is present and undamaged. Tighten the gland nut firmly onto the cable outer jacket, and always ensure the connector interface is clean and the O-ring is in place before mating and locking.

Q5: Are these connectors compatible with other brands?
A5: While some physical dimensions might be similar, we cannot guarantee compatibility or sealing performance with connectors from other manufacturers. For optimal system integrity, we recommend using matching plug and socket sets from our series.
